Carboxylate-Modified Polystyrene Latex Beads: Coupling and Assay Development Guide

Quick Answer

Carboxylate-modified polystyrene latex beads are polystyrene microspheres with carboxyl functional groups on the particle surface. The COOH surface provides a practical starting point for developing covalent conjugates with antibodies, proteins, peptides, or other ligands containing accessible primary amines.

These functional latex particles are commonly evaluated for latex agglutination assays, particle-enhanced turbidimetric assays, immunoassay development, biosensor research, and biomolecule immobilization. A successful result depends on more than the bead itself: particle size, surface functionality, ligand quality, activation conditions, blocking strategy, washing method, and assay controls must all be considered together.

What Are Carboxylate-Modified Polystyrene Latex Beads?

Carboxylate-modified polystyrene latex beads are polymer particles dispersed in an aqueous suspension. “Latex” describes the particle suspension; it does not mean that the material is natural rubber latex.

The defining feature is the carboxyl group on the particle surface. Depending on the pH and buffer environment, these groups can provide surface charge and a chemical handle for further modification. This makes COOH polystyrene latex beads useful when a project requires a more controlled surface than plain, unfunctionalized polystyrene particles.

A carboxylated particle can be supplied as a plain particle, a colored particle, or a fluorescent particle. The correct format depends on the intended readout:

• Plain particles are often considered for turbidity, agglutination, or general conjugation development.

• Colored particles can support visual assay formats.

• Fluorescent particles can support fluorescence-based detection or cell-interaction research.

The surface chemistry and the readout format should be selected together rather than as separate decisions.

Why Does a COOH Surface Matter?

A plain polystyrene surface may adsorb some biomolecules through hydrophobic or electrostatic interactions, but passive adsorption can be difficult to control. The amount, orientation, and retained activity of the bound biomolecule may vary between formulations or batches.

Carboxylate-modified polystyrene latex beads provide an alternative route. Their surface COOH groups may be evaluated for activation and subsequent covalent attachment to accessible primary amines on a ligand.

Potential advantages of a developed covalent-conjugation workflow include:

• A defined chemical route for ligand attachment

• Reduced reliance on passive adsorption alone

• Greater flexibility in selecting antibodies, proteins, peptides, or amine-containing ligands

• Compatibility with particle-based assay-development workflows

• A starting point for evaluating blocking, washing, and stability conditions

However, surface functionalization does not automatically guarantee high binding capacity, retained biological activity, low background, or assay performance. These outcomes must be confirmed using the actual ligand, sample matrix, and detection method.

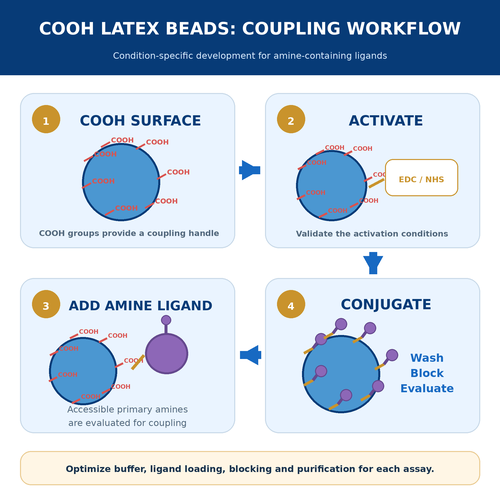

How Carboxylate Groups Support Covalent Coupling

A common approach is to activate carboxyl groups with an appropriate carbodiimide-based chemistry, often using EDC and NHS-based activation strategies. Under suitable conditions, the activated surface can react with accessible primary amines on the selected ligand to form a covalent linkage.

The exact workflow must be developed for the specific project. Important variables include:

• Particle concentration and suspension quality

• Activation buffer and pH

• Ligand concentration and purity

• Reaction time and mixing method

• Presence of competing amines or interfering additives

• Blocking reagent and wash conditions

• Required storage period and assay readout

There is no universal antibody-to-particle ratio or universal coupling time that works for every COOH latex bead project. A condition that gives high protein loading may still produce poor biological activity, excessive background, aggregation, or unstable assay performance.

For this reason, development should include both conjugation measurements and functional assay controls. A conjugate should be evaluated for target recognition, nonspecific binding, particle stability, lot consistency, and storage behavior.

Particle Size and Surface Chemistry Matter

Particle size influences how carboxylate-modified polystyrene latex beads behave in an assay. It can affect surface area, optical response, sedimentation behavior, visible agglutination, flow properties, and the amount of ligand that can be evaluated per particle mass.

When selecting a particle, consider:

• Required assay format and readout

• Target particle size range

• Particle-size distribution

• Surface carboxyl functionality

• Solid content and dispersion medium

• Plain, colored, or fluorescent format

• Target ligand and expected loading level

• Sample matrix and potential nonspecific interactions

• Required shelf-life and storage conditions

A particle selected for visible agglutination may not be the best starting material for fluorescence imaging or a particle-enhanced turbidimetric assay. The intended application should guide the microsphere specification.

Where Are Carboxylate-Modified Latex Beads Used?

Carboxylate-modified polystyrene latex beads can be evaluated in several research and assay-development directions.

Latex Agglutination Assay Development

COOH latex particles can be used as carriers for developing particle-based agglutination reactions. After a suitable ligand is coupled to the particle surface, target-dependent interactions may produce a visible or instrument-readable change.

The final performance depends on the ligand, particle size, sample matrix, blocking formulation, and reaction conditions. Specificity and background must be assessed with positive, negative, blank, and interference controls.

Particle-Enhanced Turbidimetric Assays

Particle-enhanced turbidimetric and immunoturbidimetric assay development can use functional latex particles to amplify changes in light scattering. Particle size, dispersion stability, conjugation density, and aggregation behavior are particularly important in this type of work.

A suitable bead is only one part of the formulation. Buffer selection, calibration strategy, analyzer compatibility, and reproducibility studies are also required.

Antibody, Protein, and Peptide Immobilization

Carboxylated polystyrene beads can be evaluated as supports for immobilizing antibodies, antigens, enzymes, peptides, or other amine-containing biomolecules. This may be useful in feasibility studies, assay research, capture-particle development, and particle-based analytical workflows.

The conjugation design should preserve the accessibility of the active binding site. High attachment levels alone do not prove that a coupled antibody or protein remains functional.

Fluorescent and Visual-Readout Research

When a project requires particle tracking, fluorescence detection, or visual contrast, a colored or fluorescent carboxylated particle format may be more appropriate than a plain latex particle.

The selection should consider the required optical signal, instrument compatibility, photostability requirements, target assay format, and whether the color or fluorescence could interfere with the analytical readout.

Building a Reliable COOH Latex-Bead Conjugate

A practical development plan starts with the final assay requirement rather than with a fixed coupling recipe.

First, define the analytical objective. Determine whether the bead will be used for visible agglutination, turbidimetric measurement, fluorescence detection, capture, or another particle-based workflow.

Second, select a particle specification that matches the required assay format. Consider particle size, surface chemistry, color or fluorescence, solid content, and storage requirements.

Third, evaluate a small matrix of activation and ligand-loading conditions. Include suitable controls to distinguish specific recognition from nonspecific adsorption or particle aggregation.

Fourth, develop blocking and washing conditions. An effective blocking strategy should reduce nonspecific interactions without compromising the intended ligand activity or causing bead instability.

Finally, establish performance criteria before scale-up. These may include particle appearance, dispersion behavior, assay signal, background, precision, stability, and consistency between batches.

Handling and Storage Considerations

Always follow the applicable product documentation for storage, handling, and permitted processing conditions.

Before use, mix the suspension gently enough to obtain a uniform dispersion without creating excessive foam. Avoid contamination, uncontrolled freeze-thaw exposure, and prolonged storage under conditions not recommended for the product.

During development, record the particle lot, ligand lot, activation reagents, buffer composition, mixing method, reaction conditions, and test results. This information is important when comparing formulations or transferring a process to a larger scale.

Customization for Assay Development

Different particle-based projects may require different microsphere properties. A suitable starting specification can be selected according to particle size, surface chemistry, color or fluorescence requirement, solid content, packaging format, and intended assay workflow.

For commercial assay development, the desired end use should be discussed early. This helps align the particle design, conjugation approach, quality requirements, and validation plan with the final project objective.

Frequently Asked Questions

Can carboxylate-modified polystyrene latex beads be conjugated with antibodies?

They can be evaluated for antibody coupling when the antibody has accessible primary amines and the activation, buffer, blocking, and washing conditions are optimized for that antibody and assay format.

Does a COOH surface guarantee better assay performance?

No. A carboxylated surface provides a functional coupling route, but assay performance still depends on the ligand, particle specification, conjugation conditions, sample matrix, blocking method, and validation data.

Are plain, colored, and fluorescent carboxylated particles interchangeable?

Not always. They may use related surface chemistry, but their optical properties and intended readouts are different. The particle format should match the assay design.

What particle size should I choose?

The appropriate size depends on whether the project uses visible agglutination, turbidity measurement, fluorescence detection, microscopy, cell interaction, or another analytical workflow.

Can these beads be used directly as a finished clinical diagnostic reagent?

No. Carboxylate-modified latex beads are functional particle materials for research and assay development. Any finished diagnostic reagent requires application-specific formulation, validation, quality control, and regulatory assessment.

Conclusion

Reliable COOH latex-bead development begins by matching the particle format, surface chemistry, and conjugation workflow to a defined assay objective.

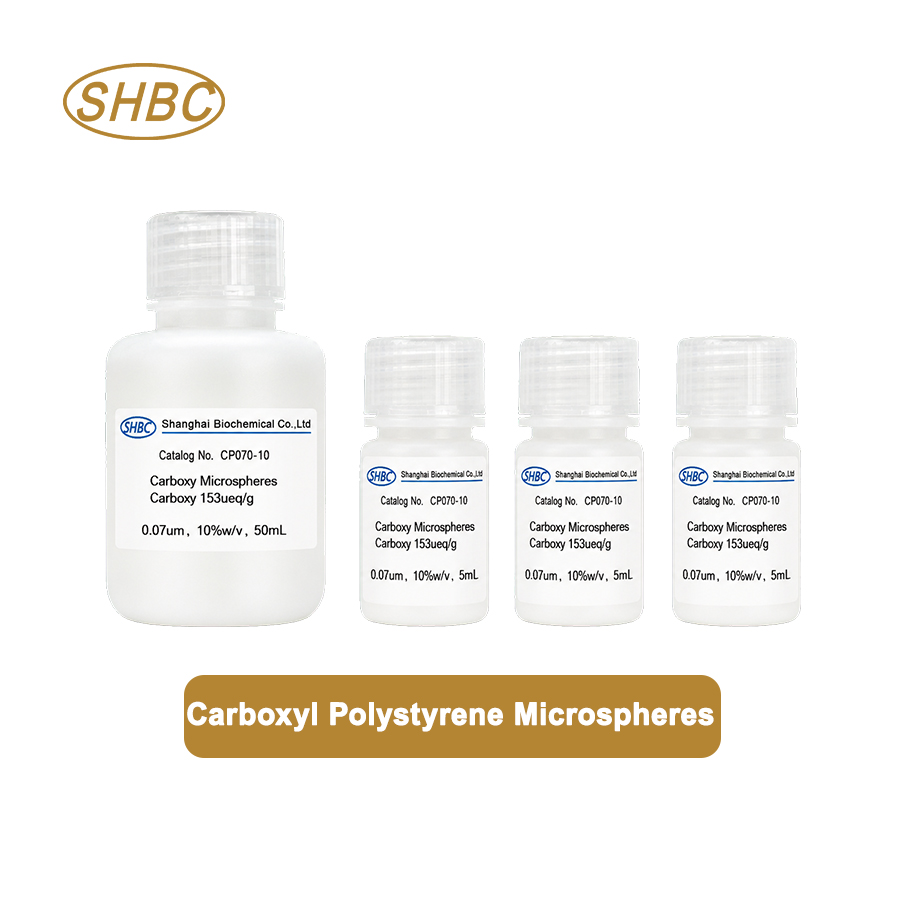

SANYU GROUP supplies Carboxyl Polystyrene Microspheres together with Fluorescent Carboxyl Polystyrene Microspheres and Colored Carboxyl Microspheres for particle-based assay development and research workflows. For projects progressing toward commercial assay development, Microspheres for IVD & POCT and contact our technical team can help identify an appropriate starting particle specification.
