Top 5 IVD Magnetic Bead Manufacturers in China 2026

Overview of China’s IVD Magnetic Bead Industry

China has developed a growing group of magnetic bead manufacturers serving chemiluminescent immunoassay, molecular diagnostics, nucleic acid extraction, protein purification, cell separation and other in-vitro diagnostic applications.

IVD magnetic beads are not simple magnetic powders. They are engineered micro- or nanoparticles containing magnetic material, a protective polymer or silica structure, and a functional outer surface.

Their performance can directly influence:

• Magnetic separation speed;

• Antibody-coupling efficiency;

• Assay background;

• Signal-to-noise ratio;

• Nucleic acid recovery;

• Reagent-pack stability;

• Automated analyzer precision;

• Lot-to-lot reproducibility.

Chinese manufacturers increasingly provide alternatives to imported magnetic beads through local particle synthesis, surface modification, biomolecule coupling, OEM manufacturing and application-development support.

This guide compares five notable IVD magnetic bead manufacturers in China in 2026:

1. SANYU;

2. BEAVER Biomedical;

3. VDO Biotech;

4. Suzhou NanoMicro Life Science Technology;

5. Bioeast Biotech.

The order is an editorial ranking based on publicly available product information, IVD relevance, product breadth, customization capability and potential commercial supply. It is not based on audited revenue, market share or independent laboratory testing.

Buyers should perform their own technical evaluation, supplier audit and incoming quality control before approving any material for a regulated diagnostic product.

How We Selected the Top Manufacturers

The companies were evaluated using publicly available information reviewed in 2026.

The main selection criteria included:

• Location and manufacturing presence in China;

• A verified magnetic bead product portfolio;

• Relevance to IVD or diagnostic assay development;

• Products for CLIA or molecular diagnostics;

• Availability of functionalized bead surfaces;

• Particle-size options;

• Custom manufacturing capability;

• OEM or ODM support;

• Application-development experience;

• Quality-system information;

• Commercial production capability;

• Technical documentation.

Companies that mainly sell permanent magnets, electronic ferrite beads or finished diagnostic instruments without a clear magnetic microsphere product line were excluded.

The final list contains companies with different strengths. Some focus on CLIA magnetic beads, while others provide nucleic acid extraction materials, protein-coupling particles or integrated sample-processing solutions.

Quick Comparison of the Top 5 Manufacturers

1. SANYU

SANYU is a Chinese manufacturer specializing in functional microspheres, magnetic beads, chromatography media and biological reagents for IVD, POCT, bioseparation, pharmaceutical manufacturing and scientific research.

The company operates the Nanomicron Spheres product platform and supplies carboxyl magnetic beads, silica magnetic beads, streptavidin magnetic beads, NHS magnetic beads and other customized particle products.

SANYU states that it was founded in 2005 and provides factory-direct supply together with OEM and ODM customization. Its public portfolio covers microspheres and magnetic beads for chemiluminescence, nucleic acid extraction, protein purification and biomolecule immobilization.

SHBC Carboxyl Magnetic Beads

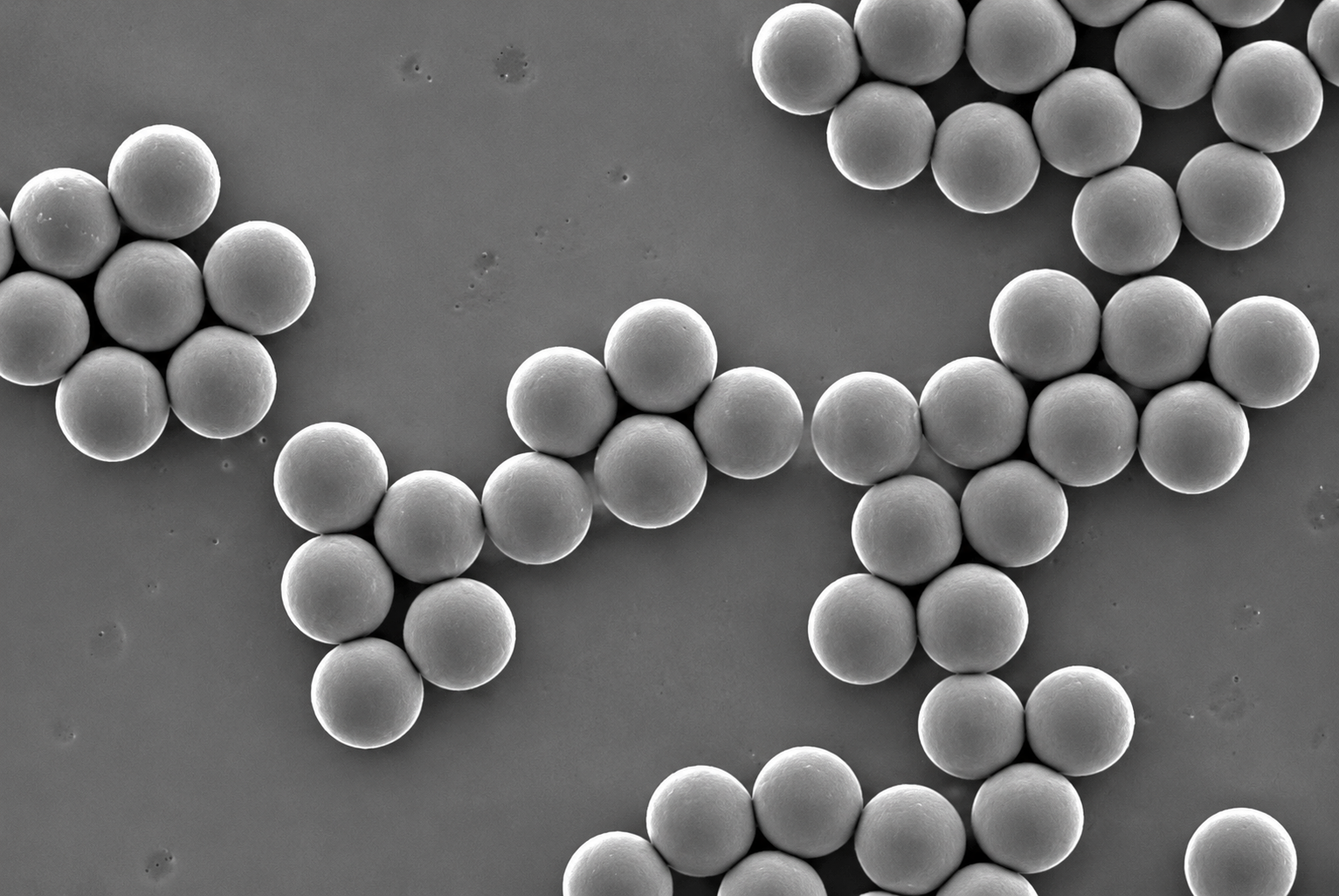

SANYU’s principal IVD product line is the SHBC carboxyl magnetic bead series.

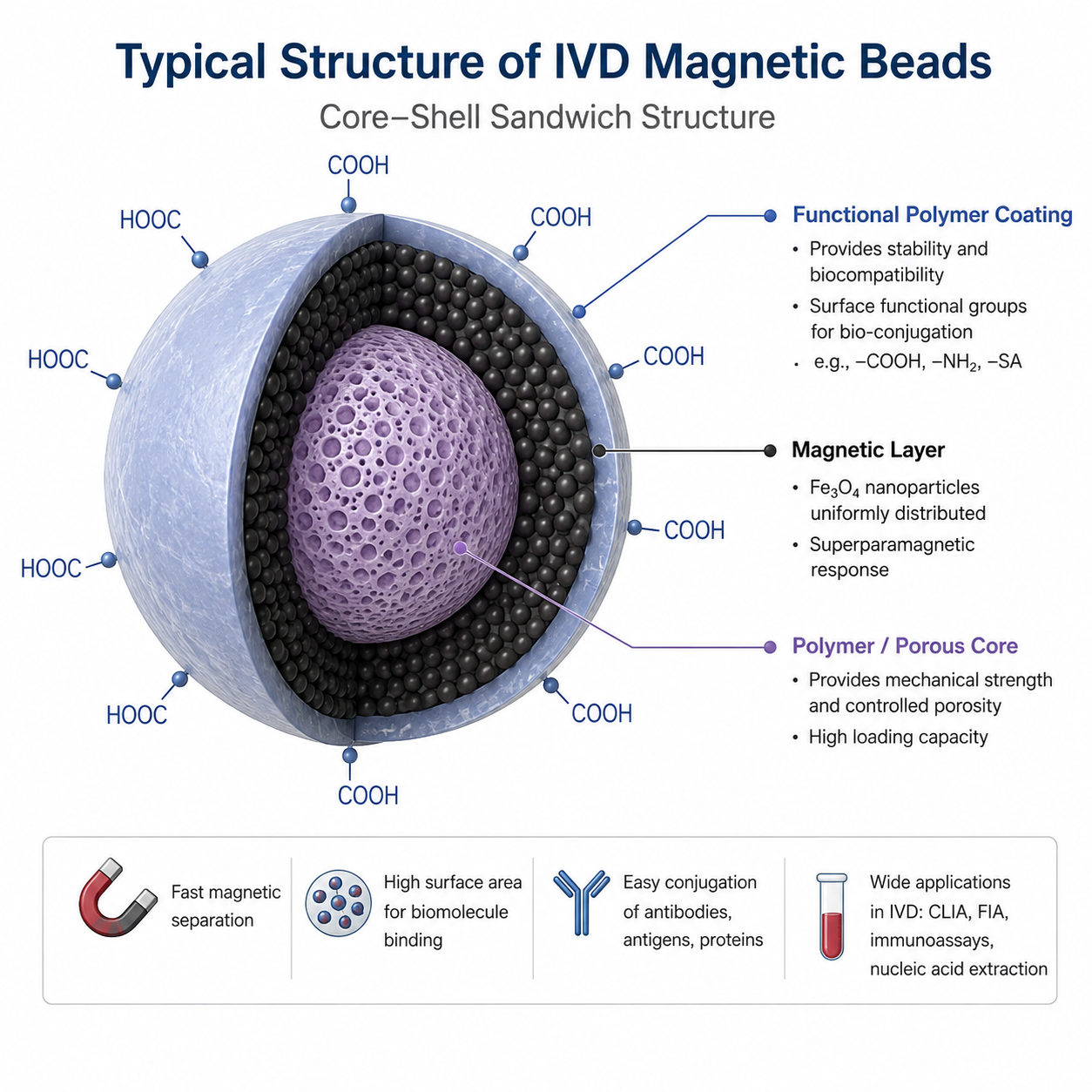

These beads use a sandwich-type architecture consisting of:

• A porous polymer core;

• A magnetic material layer;

• A functional polymer outer coating.

The design is intended to combine strong magnetic responsiveness with suspension stability, controlled particle size and a functional surface that separates the biomolecule-coupling environment from the magnetic material.

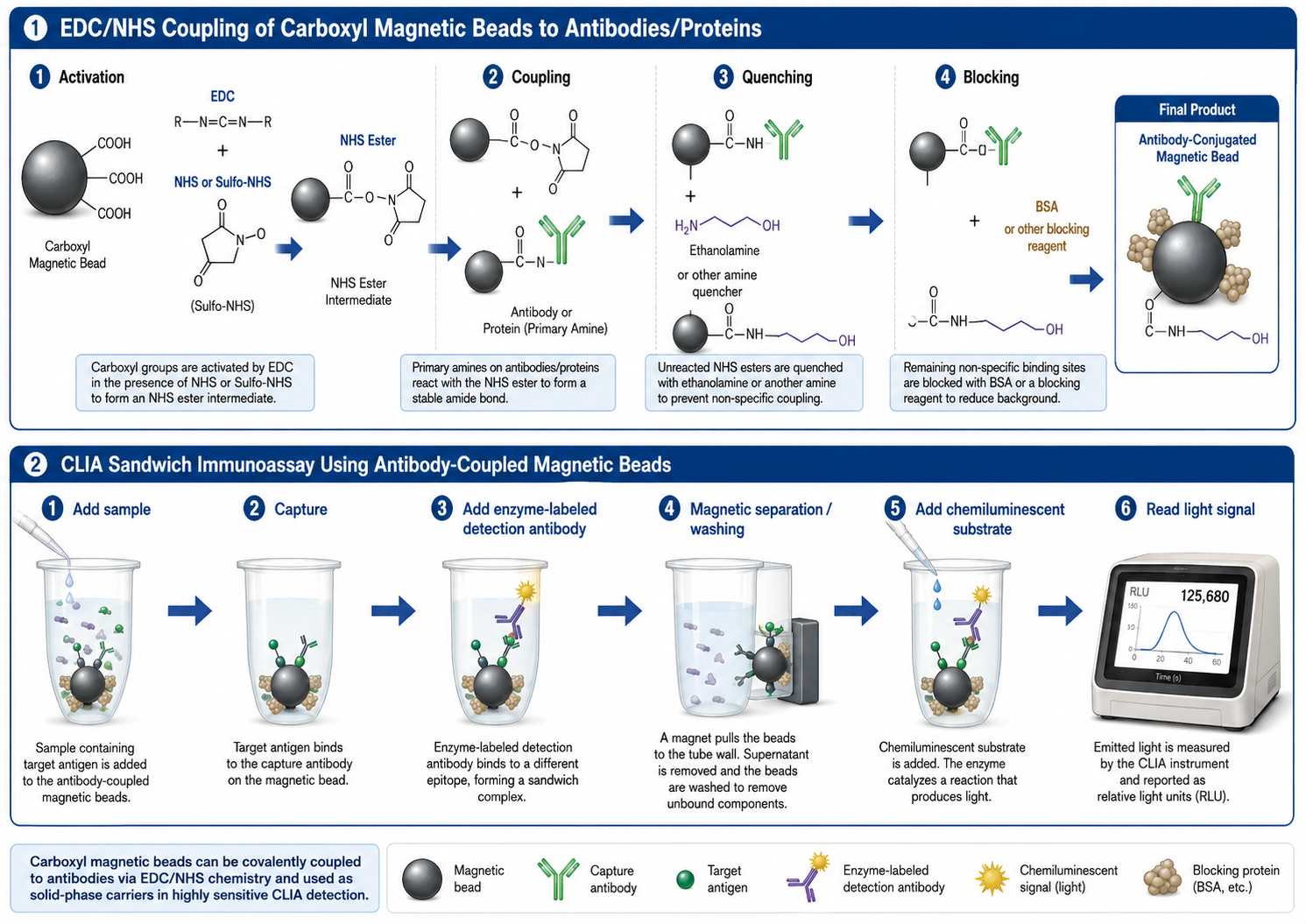

The outer surface contains carboxyl groups that can be activated using EDC or EDC/NHS chemistry.

The activated beads can be covalently coupled with:

• Antibodies;

• Antigens;

• Proteins;

• Peptides;

• Enzymes;

• Oligonucleotides;

• DNA;

• RNA;

• Other amine-containing molecules.

SANYU publicly lists particle sizes ranging from submicron products to large magnetic microspheres. Available or customizable sizes include approximately 0.1, 0.2, 0.5, 1, 1.5, 2, 2.8, 3, 5, 10, 15, 20, 30, 40, 50 and 100 µm.

Other magnetic bead products

SANYU’s magnetic bead portfolio includes:

• Carboxyl magnetic beads;

• Silica magnetic beads;

• Streptavidin magnetic beads;

• NHS-activated magnetic beads;

• Custom functionalized magnetic particles;

• Magnetic beads for nucleic acid extraction;

• Magnetic beads for protein immobilization;

• OEM magnetic bead intermediates.

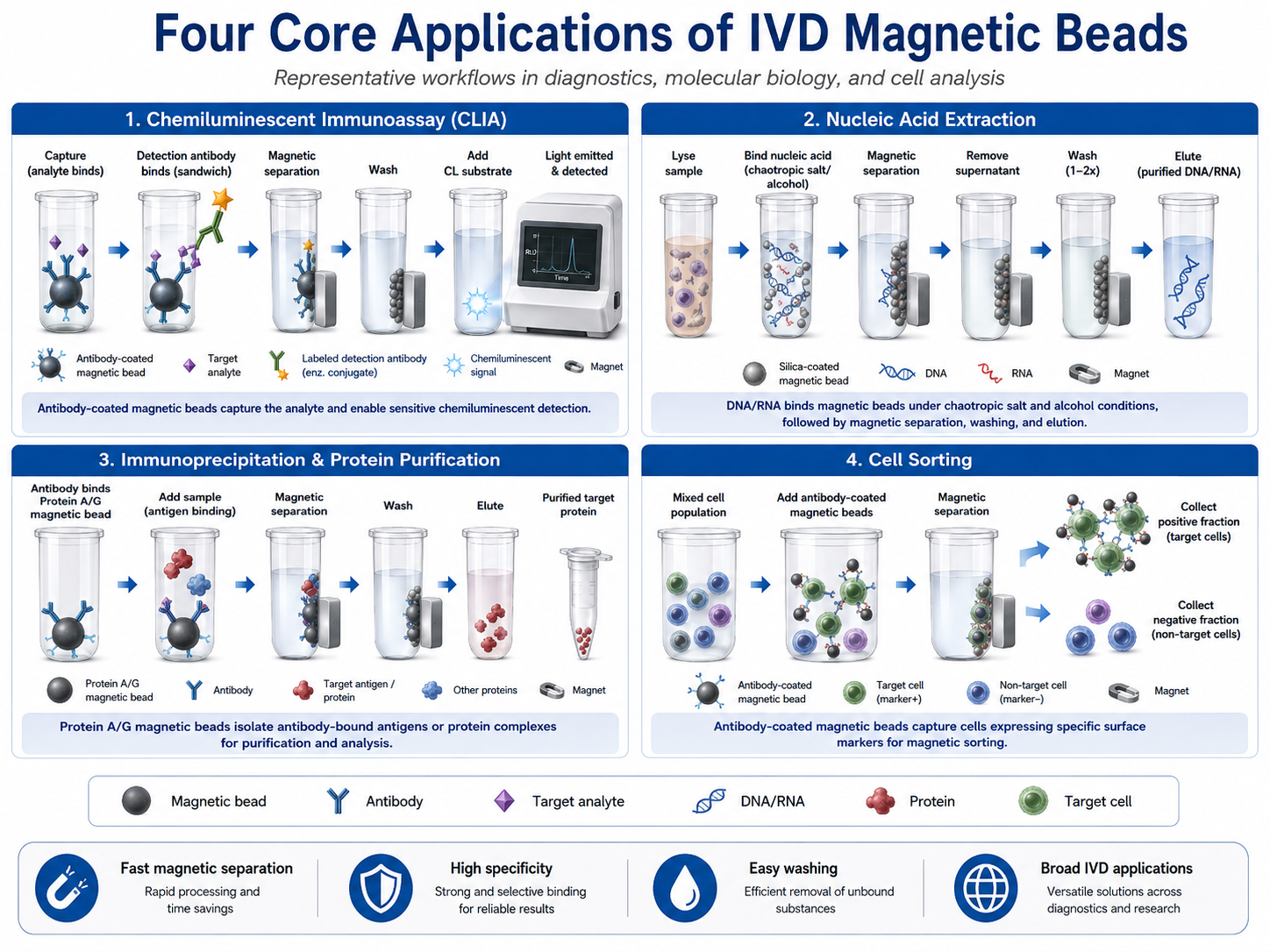

Main IVD applications

SANYU positions its magnetic beads for:

• Chemiluminescent immunoassays;

• Enzyme chemiluminescent immunoassays;

• Molecular diagnostic capture;

• DNA and RNA purification;

• Immunoprecipitation;

• Antibody immobilization;

• Protein purification;

• Cell separation;

• Biosensor development;

• Magnetic bioseparation.

Key strengths

• Broad particle-size selection;

• Sandwich-structured magnetic bead design;

• Carboxyl, silica, streptavidin and activated surfaces;

• CLIA and molecular diagnostic applications;

• Custom particle size and concentration;

• OEM and ODM services;

• Custom packaging;

• Biomolecule-coupling support;

• Laboratory samples and bulk production.

Best suited for

SANYU is particularly suitable for:

• CLIA reagent manufacturers;

• Molecular diagnostic companies;

• POCT developers;

• Diagnostic raw-material distributors;

• Companies replacing imported magnetic beads;

• Customers requiring customized particle sizes;

• OEM and private-label magnetic bead projects.

Points to confirm before ordering

Buyers should request batch-specific information for:

• Mean particle diameter;

• Particle-size coefficient of variation;

• Magnetic material content;

• Magnetic separation time;

• Carboxyl-group density;

• Solids concentration;

• Suspension buffer;

• Preservative;

• Sedimentation rate;

• Redispersion performance;

• Non-specific adsorption;

• Recommended coupling conditions.

Commercial IVD customers should also establish specifications for lot reservation, manufacturing-change notification, stability, annual capacity and quality agreements.

2. BEAVER Biomedical

BEAVER Biomedical is a magnetic bead and sample-processing technology company located in Suzhou Industrial Park.

The company focuses on IVD sample-processing solutions and operates technology platforms for biological nanosurfaces, nano-magnetic beads, biological reagents and compact instruments.

BEAVER states that its products include magnetic bead raw materials, nucleic acid extraction reagents, immunoassay magnetic beads, protein-coupled intermediates, cell separation products, sample-processing equipment and laboratory consumables. The company reports ISO 9001 and ISO 13485 certifications.

BeaverBeads Mag COOH

BeaverBeads Mag COOH are polymer-coated, superparamagnetic beads containing carboxyl groups.

The carboxyl surface can be activated for covalent immobilization of:

• Peptides;

• Proteins;

• Antibodies;

• Oligonucleotides;

• Other amino-containing ligands.

BEAVER publicly lists carboxyl magnetic particles with nominal sizes including:

• 300 nm;

• 1 µm;

• 2 µm;

• 5 µm.

The company also publishes different carboxyl-content values according to particle size.

Its product information describes a Fe₃O₄ magnetic core, a polymer shell, superparamagnetic behavior, monodisperse particle distributions and magnetic response within a stated time under defined conditions.

Main magnetic bead categories

BEAVER’s portfolio includes:

• Carboxyl magnetic beads;

• Amino magnetic beads;

• Pre-activated magnetic beads;

• Streptavidin magnetic beads;

• Immunoassay magnetic beads;

• Silica magnetic beads;

• Polymer magnetic beads;

• Magnetic nanoparticles;

• Dextran magnetic beads;

• Magnetic agarose beads;

• Protein purification magnetic beads;

• Cell isolation magnetic beads;

• Nucleic acid extraction magnetic beads.

Main IVD applications

BEAVER products are relevant to:

• Immunology detection;

• Molecular diagnostic sample preparation;

• DNA extraction;

• RNA extraction;

• Viral nucleic acid extraction;

• Cell-free DNA extraction;

• mRNA isolation;

• Protein purification;

• Immunoprecipitation;

• Cell isolation and activation;

• Magnetic solid-phase extraction.

Key strengths

• Broad nano-magnetic bead platform;

• Magnetic bead raw materials and finished kits;

• Immunoassay and nucleic acid applications;

• Polymer, silica, agarose and dextran formats;

• Sample-processing automation;

• ISO 9001 and ISO 13485 certifications;

• International distribution experience;

• Published particle and carboxyl-content information.

Best suited for

BEAVER is particularly suitable for:

• Molecular diagnostic sample preparation;

• DNA/RNA extraction kit development;

• Immunoassay development;

• Protein purification;

• Cell separation;

• Companies requiring beads, reagents and automation together.

Points to confirm before ordering

IVD buyers should clarify whether they require:

• A raw magnetic bead;

• A pre-activated bead;

• A protein-coated intermediate;

• A complete extraction reagent;

• A finished isolation kit.

The quality and regulatory requirements for these product categories are different.

For raw magnetic beads, request specifications covering:

• Particle size;

• PDI or CV;

• Surface-group content;

• Magnetic response;

• Binding capacity;

• Shelf life;

• Preservative;

• Lot-to-lot consistency.

3. VDO Biotech

VDO Biotech is a Suzhou-based manufacturer specializing in microsphere development, large-scale production and application services.

Its portfolio includes magnetic microspheres, latex microspheres, colored microspheres, fluorescent microspheres, flow cytometry beads, particle standards and chromatography media.

The company states that it was founded in 2014, operates manufacturing facilities covering more than 10,000 square meters and holds ISO 9001:2015 certification. VDO also offers custom microsphere production, large-scale protein-microsphere conjugation and OEM services.

Magnetic microspheres for chemiluminescence

VDO’s magnetic microspheres for chemiluminescent immunoassays are described as superparamagnetic particles with:

• Moderate magnetic content;

• Fast magnetic response;

• Good redispersibility;

• Controlled particle size;

• Adjustable surface properties;

• High functional-group loading.

Publicly listed standard particle sizes include:

• 0.6 µm;

• 1 µm;

• 3 µm.

Available surface formats include:

• Carboxyl;

• Streptavidin.

The company publishes a particle-size CV below 5% for this product family and states that production can be scaled to approximately 50 liters per batch.

Nucleic acid extraction magnetic microspheres

VDO also provides magnetic microspheres designed for nucleic acid extraction.

The company positions these particles for:

• Viral DNA and RNA extraction;

• Serum and plasma samples;

• PCR product purification;

• Cell-free DNA extraction;

• Animal and plant mRNA extraction;

• Automated extraction systems.

Its magnetic bead product descriptions emphasize dispersion, low non-specific adsorption, rapid magnetic response, capture efficiency and elution performance.

Main product options

VDO’s magnetic microsphere products include:

• Carboxyl magnetic microspheres;

• Streptavidin magnetic microspheres;

• Nucleic acid extraction beads;

• Protein A magnetic microspheres;

• Protein G magnetic microspheres;

• Physical adsorption magnetic particles;

• Customized magnetic microspheres;

• OEM microsphere intermediates.

Key strengths

• Dedicated microsphere manufacturing platform;

• CLIA and molecular diagnostic product lines;

• Published particle-size and uniformity data;

• Surface chemistry customization;

• Application case studies;

• Protein and nucleic acid coupling services;

• Batch-production scale information;

• OEM support.

Best suited for

VDO is particularly relevant to:

• CLIA reagent developers;

• Nucleic acid extraction kit manufacturers;

• Diagnostic companies requiring custom bead density;

• Companies optimizing surface hydrophilicity;

• OEM microsphere projects;

• Customers requiring protein-coupled intermediates.

Points to confirm before ordering

Buyers should compare different VDO bead models according to:

• Particle diameter;

• Density;

• Magnetic content;

• Carboxyl density;

• Streptavidin capacity;

• Suspension time;

• Separation speed;

• Analyzer magnet geometry.

The same bead may perform differently in different cuvette shapes, reagent-pack mixing systems and magnetic separation modules.

4. Suzhou NanoMicro Life Science Technology

Suzhou NanoMicro Life Science Technology is a microsphere company associated with Suzhou NanoMicro Technology.

Its product portfolio includes magnetic polymer microspheres, magnetic silica microspheres, magnetic agarose beads, latex particles, fluorescent beads, flow cytometry encoding particles and particle-size standards.

The company’s MagneStar magnetic polymer microspheres are designed for applications including magnetic-particle chemiluminescence and biomagnetic separation.

MagneStar magnetic polymer microspheres

The MP series uses a sandwich-type particle architecture.

The company describes the structure as:

• A porous polymer microsphere core;

• Magnetic material distributed around or within the porous region;

• An external polymer coating.

The surface uses multiple hydrophilic coating layers intended to reduce non-specific adsorption.

Available surface chemistries include:

• Carboxyl;

• Tosyl;

• Amino;

• Streptavidin;

• Biotin;

• Other application-specific surfaces.

Suzhou NanoMicro Life Science states that its MP series is suitable for high-sensitivity biological detection, including magnetic-particle chemiluminescent reagent development.

CLIA magnetic bead options

The company publicly describes two principal particle-size platforms for chemiluminescent reagent development:

• MP1 at approximately 1.5 µm;

• MP3 at approximately 3.0 µm.

These formats are intended to balance suspension stability, specific surface area, magnetic separation and compatibility with automated equipment.

Available product configurations include:

• Carboxyl magnetic beads;

• Tosyl magnetic beads;

• Streptavidin magnetic beads;

• Biotin magnetic beads;

• High-capacity functionalized beads.

The company also publishes platform guidance indicating that carboxyl beads can be evaluated with acridinium ester, alkaline phosphatase and HRP systems, while tosyl surfaces may require additional attention to non-specific adsorption.

Magnetic beads for nucleic acid extraction

Suzhou NanoMicro Life Science also provides magnetic silica and functionalized magnetic particles for DNA and RNA purification.

Public application information describes approximately 0.5 µm magnetic silica and carboxyl products for extracting nucleic acids from:

• Whole blood;

• Plasma;

• Serum;

• Nasal or throat swabs;

• Cell lysates;

• Fixed tissues;

• Plant and animal samples.

Key strengths

• Dedicated microsphere technology platform;

• Sandwich-structured magnetic polymer beads;

• CLIA-specific particle sizes;

• Multiple surface chemistries;

• Low-nonspecific-binding surface designs;

• Magnetic silica beads;

• Detailed application and FAQ resources;

• Products for both immunodiagnostics and molecular diagnostics.

Best suited for

Suzhou NanoMicro Life Science is particularly suitable for:

• Automated CLIA reagent development;

• Acridinium ester platforms;

• ALP and HRP chemiluminescence;

• Small-molecule assays using streptavidin-biotin systems;

• Nucleic acid extraction;

• Multiplex and flow cytometry development;

• Customers requiring detailed application guidance.

Points to confirm before ordering

Buyers should compare MP1 and MP3 products under the intended analyzer conditions.

Important evaluation items include:

• Suspension stability;

• Onboard reagent-pack mixing;

• Magnetic collection time;

• Resuspension after washing;

• Surface-group density;

• Protein-coupling capacity;

• Non-specific signal;

• Low-concentration assay precision.

5. Bioeast Biotech

Bioeast Biotech is a Hangzhou-based supplier of IVD raw materials and integrated diagnostic-development solutions.

The company develops microspheres, antigens, antibodies, enzymes, active proteins and application solutions for CLIA, ELISA, fluorescence immunoassay, rapid tests and immunoturbidimetry.

Bioeast states that it was established in 2018 and operates an ISO 13485-certified quality system. Its magnetic bead portfolio is developed for chemiluminescent immunoassays and molecular diagnostic applications.

Bioeast magnetic bead products

Bioeast publicly lists magnetic beads with surface groups including:

• Carboxyl;

• Tosyl;

• Amino;

• Streptavidin.

Standard product sizes include approximately:

• 1.2 µm;

• 2.8 µm.

Its catalog identifies carboxyl, tosyl and amino beads at stated concentrations for CLIA, while streptavidin formats are positioned for both CLIA and molecular diagnostic applications.

The company’s website describes its magnetic bead products as having:

• Homogeneous particle size;

• Stable performance;

• Multiple surface-group options;

• Low background;

• Limited non-specific adsorption;

• Production capacity exceeding 2 kg per batch.

Integrated IVD raw-material capabilities

One difference between Bioeast and a pure particle manufacturer is its broader IVD raw-material portfolio.

Bioeast can combine magnetic beads with:

• Capture antibodies;

• Detection antibodies;

• Antigens;

• Enzymes;

• Active proteins;

• Blocking materials;

• Assay-development services.

The company publishes CLIA application examples involving antibody-coated magnetic microspheres and diagnostic targets such as thyroid-related markers.

Key strengths

• Magnetic beads and biological raw materials;

• Carboxyl, tosyl, amino and streptavidin surfaces;

• CLIA application experience;

• Molecular diagnostic bead options;

• ISO 13485-certified quality system;

• Published production-capacity information;

• Integrated assay-development support;

• COA search and customer-support resources.

Best suited for

Bioeast is particularly suitable for:

• CLIA developers requiring beads and antibodies;

• Companies developing thyroid, tumor or infectious-disease assays;

• Customers requiring integrated raw-material screening;

• Projects needing coating and assay optimization;

• Diagnostic companies looking for domestic raw-material packages.

Points to confirm before ordering

Customers should clarify whether the quotation covers:

• Uncoated magnetic beads;

• Streptavidin-coated beads;

• Antibody-coated intermediates;

• A complete reagent solution;

• Assay-development services.

Specifications and pricing can differ considerably among these options.

Which Chinese Magnetic Bead Manufacturer Is Best for Your Application?

The best manufacturer depends on the diagnostic platform, bead architecture, surface chemistry, target molecule and expected commercial volume.

Best overall custom IVD magnetic bead option

SANYU provides a broad combination of carboxyl, silica, streptavidin and customized magnetic bead products. It is particularly relevant to customers requiring flexible particle sizes, OEM manufacturing and direct factory communication.

Best for integrated sample-processing solutions

BEAVER combines magnetic bead raw materials with nucleic acid extraction reagents, cell separation products, magnetic racks, automation equipment and consumables.

Best for controlled CLIA microsphere production

VDO provides publicly documented 0.6, 1 and 3 µm magnetic microspheres, surface chemistry options, application data and batch-scale production information.

Best for detailed CLIA surface selection

Suzhou NanoMicro Life Science offers carboxyl, tosyl, streptavidin and other surfaces together with specific guidance for acridinium ester, ALP and HRP systems.

Best for beads plus biological raw materials

Bioeast provides magnetic beads together with antibodies, antigens, enzymes and integrated assay-development services.

What Are IVD Magnetic Beads?

IVD magnetic beads are magnetic micro- or nanoparticles used as solid supports in diagnostic assays and sample-preparation workflows.

A typical magnetic bead contains:

1. Magnetic iron oxide;

2. A polymer, silica or agarose structure;

3. A protective surface layer;

4. Reactive functional groups or immobilized ligands.

The magnetic material allows the particles to be collected with an external magnetic field.

The outer surface allows the particles to capture:

• Antibodies;

• Antigens;

• Proteins;

• DNA;

• RNA;

• Cells;

• Viruses;

• Other biological targets.

Well-designed diagnostic magnetic beads should combine:

• Fast magnetic response;

• Low residual magnetism;

• Good suspension stability;

• Easy redispersion;

• Low non-specific adsorption;

• Controlled particle size;

• Reproducible surface chemistry.

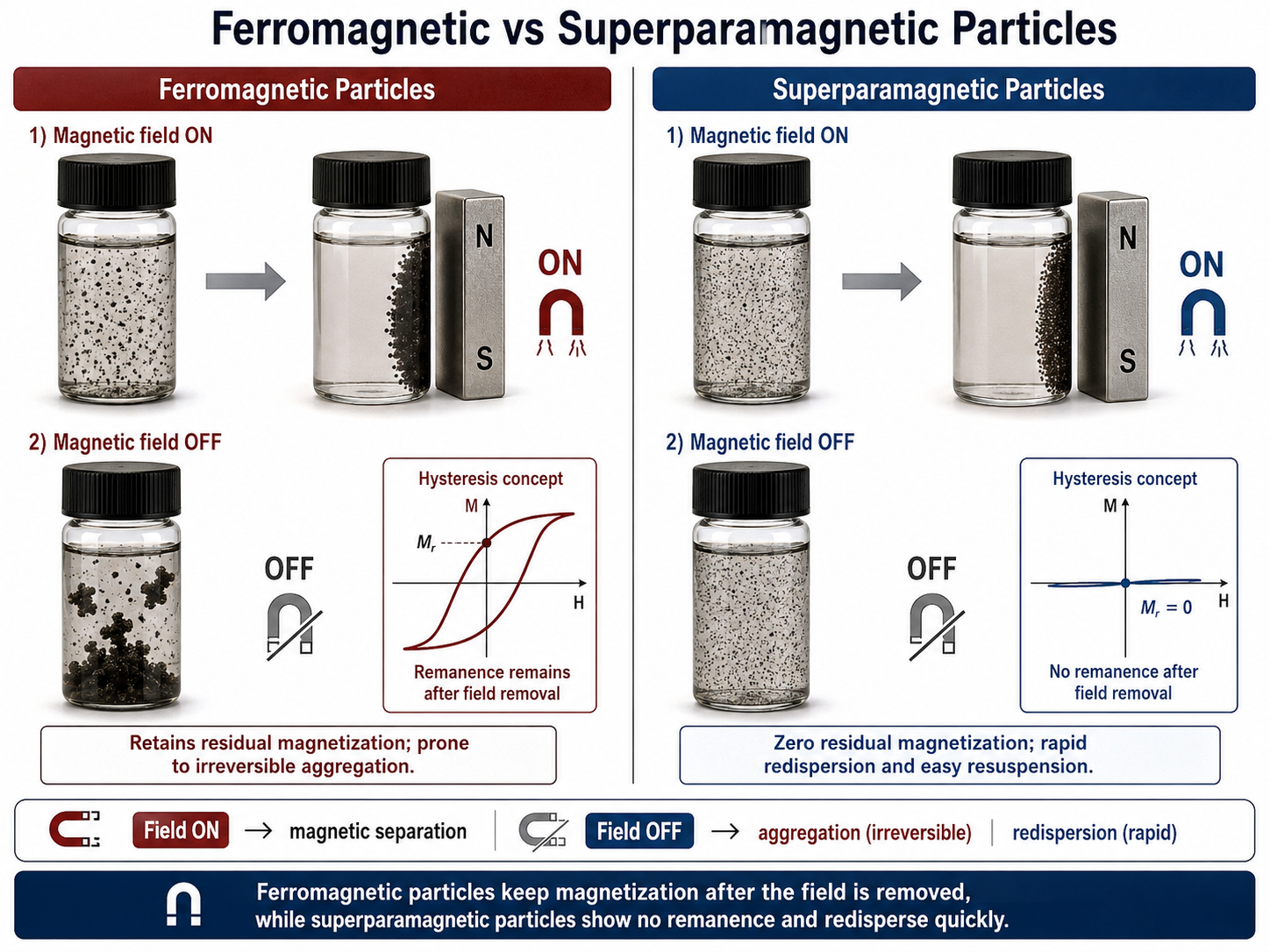

Why Superparamagnetic Behavior Matters

Superparamagnetic particles respond to an external magnetic field but retain little permanent magnetism after the field is removed.

This behavior helps reduce irreversible bead aggregation.

For an automated diagnostic analyzer, suitable magnetic beads should:

• Collect rapidly when a magnet is applied;

• Redisperse when mixing resumes;

• Remain stable during reagent storage;

• Avoid forming permanent clusters;

• Tolerate repeated magnetic wash cycles.

A higher magnetic content is not always better.

Excessive magnetic material can increase bead density and sedimentation, while insufficient magnetic content can make separation too slow.

The best bead balances magnetic response, suspension stability, redispersion and assay performance.

Major Types of IVD Magnetic Beads

Carboxyl Magnetic Beads

Carboxyl magnetic beads contain surface COOH groups.

The groups can be activated using EDC or EDC/NHS chemistry and coupled with primary amino groups on biological molecules.

Common coupling targets include:

• Antibodies;

• Antigens;

• Proteins;

• Peptides;

• Enzymes;

• Amino-modified oligonucleotides.

Carboxyl beads are widely used because the coupling chemistry is flexible and familiar to most IVD development laboratories.

Tosyl-Activated Magnetic Beads

Tosyl-activated surfaces can react with amino or sulfhydryl groups on proteins.

Potential advantages include:

• Stable covalent immobilization;

• No separate EDC activation step;

• Suitability for some antibodies and proteins.

Potential limitations include:

• Longer coupling times;

• Sensitivity to buffer conditions;

• Potentially higher non-specific adsorption;

• Need for optimized blocking.

Tosyl beads should be compared directly with carboxyl beads under the actual assay conditions.

Streptavidin Magnetic Beads

Streptavidin magnetic beads bind biotinylated molecules with high affinity.

They are used with:

• Biotinylated antibodies;

• Biotinylated antigens;

• Biotinylated peptides;

• Biotinylated DNA probes;

• Biotinylated RNA probes.

Streptavidin-biotin systems are especially useful when direct coupling affects the activity or orientation of a small molecule.

Important purchasing parameters include:

• Biotin-binding capacity;

• Free streptavidin leakage;

• Non-specific adsorption;

• Particle concentration;

• Stability after storage.

Silica Magnetic Beads

Silica magnetic beads are commonly used for DNA and RNA extraction.

Under chaotropic salt and alcohol conditions, nucleic acids bind to the silica surface.

After magnetic separation and washing, the purified DNA or RNA is eluted in a low-salt buffer.

Important performance parameters include:

• Nucleic acid recovery;

• Inhibitor removal;

• Elution efficiency;

• Magnetic carryover;

• Fragment-size recovery;

• Sample-matrix compatibility.

Amino and NHS-Activated Magnetic Beads

Amino magnetic beads can be modified through several chemical routes and may be useful for attaching carboxyl-containing ligands.

NHS-activated beads contain reactive esters that can couple directly with primary amino groups on proteins.

NHS beads simplify the coupling workflow but require careful handling because the activated surface is sensitive to moisture and hydrolysis.

Magnetic Agarose Beads

Magnetic agarose beads combine the hydrophilicity and porous structure of agarose with magnetic separation.

They are commonly used for:

• Protein A or Protein G purification;

• His-tag protein purification;

• Immunoprecipitation;

• Affinity purification;

• Enzyme immobilization.

They are usually larger and more porous than CLIA magnetic polymer microspheres.

Major IVD Applications

Chemiluminescent Immunoassays

Magnetic beads act as the solid phase in many automated CLIA and CLEIA systems.

A typical sandwich immunoassay includes:

1. Immobilizing a capture antibody on the magnetic bead;

2. Mixing the bead with the patient sample;

3. Capturing the target analyte;

4. Adding a labeled detection antibody;

5. Applying a magnet;

6. Washing away unbound material;

7. Adding or triggering the chemiluminescent substrate;

8. Measuring the emitted light.

Applications include:

• Infectious disease testing;

• Tumor markers;

• Thyroid hormones;

• Fertility hormones;

• Cardiac markers;

• Autoimmune diseases;

• Inflammatory biomarkers.

DNA and RNA Extraction

Magnetic beads can extract nucleic acids from:

• Whole blood;

• Serum;

• Plasma;

• Saliva;

• Swabs;

• Tissue;

• Cell cultures;

• Stool;

• Plant samples;

• Viral transport media.

The purified DNA or RNA may be used for:

• PCR;

• RT-PCR;

• qPCR;

• Digital PCR;

• Sequencing;

• Hybridization assays.

NGS Cleanup and Size Selection

Carboxyl magnetic beads can reversibly bind DNA in the presence of polyethylene glycol and salt.

Changing the bead-to-sample ratio allows developers to control which DNA fragment sizes remain bound or in solution.

Important parameters include:

• Recovery yield;

• Size-selection accuracy;

• Reproducibility;

• Bead carryover;

• Compatibility with automation.

Immunoprecipitation and Protein Purification

Protein A, Protein G, streptavidin and other affinity magnetic beads can isolate proteins or protein complexes.

Magnetic separation reduces the need for centrifugation and can simplify automated washing.

Cell Separation

Antibody-coated magnetic beads can capture cells expressing specific surface markers.

Applications include:

• Immune cell isolation;

• Stem cell enrichment;

• Circulating tumor cell capture;

• Pathogen concentration;

• Cell depletion;

• Cell activation.

How to Compare IVD Magnetic Bead Manufacturers

1. Particle Architecture

Common architectures include:

• Homogeneous magnetic polymer beads;

• Core-shell beads;

• Sandwich-structured beads;

• Porous polymer beads;

• Silica-coated magnetic beads;

• Magnetic agarose beads.

Architecture affects:

• Magnetic response;

• Iron exposure;

• Density;

• Surface area;

• Sedimentation;

• Non-specific adsorption;

• Biomolecule-coupling performance.

2. Particle Size

Particle size influences:

• Surface area;

• Ligand-binding capacity;

• Reaction kinetics;

• Magnetic separation;

• Sedimentation;

• Analyzer compatibility.

Submicron beads offer high surface area but may require a stronger magnetic gradient.

Larger beads often separate more rapidly but may settle faster during reagent storage.

3. Size Distribution

Request more than a nominal particle size.

Useful data include:

• Mean diameter;

• Coefficient of variation;

• Polydispersity index;

• D10, D50 and D90;

• Dynamic light scattering data;

• Microscopy images.

A narrow size distribution generally supports more reproducible surface area, magnetic movement and assay performance.

4. Magnetic Content

Magnetic content may be reported as:

• Iron oxide percentage;

• Ferrite percentage;

• Saturation magnetization;

• Magnetic susceptibility;

• Magnetic collection time.

Values generated using different instruments or magnets may not be directly comparable.

5. Magnetic Separation Time

Test separation time with:

• The intended magnet;

• The actual tube or cuvette;

• The intended sample volume;

• The working bead concentration;

• The real assay buffer.

A specification measured in a small laboratory tube may not predict performance inside an automated analyzer.

6. Sedimentation

Rapid bead sedimentation can create concentration gradients in a reagent pack.

Evaluate:

• Time to visible settling;

• Concentration uniformity;

• Required mixing frequency;

• Performance after onboard storage;

• Recovery after gentle mixing.

7. Redispersibility

After magnetic collection, the bead pellet must redisperse easily.

Poor redispersion can cause:

• Bead loss;

• Variable surface area;

• Incomplete washing;

• High assay CV;

• Probe blockage;

• Instrument carryover.

Test redispersion after multiple collection and wash cycles.

8. Surface Functional-Group Density

For carboxyl beads, request the COOH content.

It may be reported as:

• µmol/g;

• µeq/g;

• mmol/g;

• Functional groups per surface area.

A higher functional-group level does not automatically produce a better assay.

Excessive surface charge may affect colloidal stability, biomolecule orientation and non-specific binding.

9. Coupling Efficiency

Coupling efficiency should not be measured only by total protein depletion from the supernatant.

A complete evaluation should include:

• Total ligand coupled;

• Active ligand capacity;

• Antigen-binding activity;

• Assay signal;

• Background;

• Stability after storage.

10. Non-Specific Binding

Non-specific binding can increase assay background.

Potential sources include:

• Serum proteins;

• Detection antibodies;

• Heterophilic antibodies;

• Rheumatoid factor;

• Enzyme conjugates;

• Nucleic acid contaminants;

• Plastic surfaces.

Hydrophilic coatings and optimized blocking can reduce unwanted adsorption.

11. Automation Compatibility

Evaluate the beads inside the intended system.

Important factors include:

• Pipetting accuracy;

• Probe mixing;

• Cuvette geometry;

• Magnet position;

• Collection time;

• Wash efficiency;

• Carryover;

• Reagent-pack stability;

• Throughput.

12. Lot-to-Lot Consistency

Commercial IVD specifications may cover:

• Particle size;

• Size CV;

• Magnetic content;

• Separation time;

• Surface-group density;

• Solids concentration;

• pH;

• Conductivity;

• Binding capacity;

• Non-specific binding;

• Functional assay performance.

13. Quality Documentation

Ask whether the supplier can provide:

• Certificate of Analysis;

• Safety Data Sheet;

• ISO certificates;

• Particle-size report;

• Surface-group data;

• Magnetic-content data;

• Stability information;

• Batch traceability;

• Change-notification procedure;

• Quality agreement;

• Audit support.

14. Commercial Scale-Up

Confirm the supplier’s ability to move from samples to commercial manufacturing.

Ask about:

• Development batch size;

• Pilot batch size;

• Commercial batch size;

• Annual capacity;

• Scale-up comparability;

• Minimum order quantity;

• Lead time;

• Safety stock;

• Reserved production lots;

• Business-continuity plans.

Chinese Manufacturers vs International Brands

Chinese magnetic bead manufacturers may provide:

• Lower total procurement cost;

• Flexible sample quantities;

• Faster customization;

• Local technical communication;

• OEM and private-label services;

• Shorter lead times for Chinese customers;

• Alternatives to imported materials.

International brands may offer:

• Longer commercial histories;

• Established regulatory documentation;

• Global inventory networks;

• Platform-specific validation;

• Broad published application data.

The best decision should be based on technical performance and supply risk rather than country of origin alone.

A Chinese manufacturer can be an effective supplier when it demonstrates:

• Controlled particle production;

• Stable batch specifications;

• Reliable quality documentation;

• Commercial-scale capacity;

• Responsive technical support;

• Formal change control.

Direct Manufacturer vs Distributor

Distributors are useful for small orders and rapid local delivery.

A direct manufacturer is normally preferable for custom development, commercial scale-up and long-term IVD supply.

Information to Include in an RFQ

A complete magnetic bead request for quotation should include:

1. Intended application;

2. Assay format;

3. Target analyte;

4. Particle architecture;

5. Required particle size;

6. Acceptable size CV;

7. Surface functional group;

8. Required functional-group density;

9. Magnetic separation-time target;

10. Magnet geometry;

11. Sample volume;

12. Solids concentration;

13. Required ligand-binding capacity;

14. Maximum non-specific binding;

15. Suspension buffer;

16. Surfactant restrictions;

17. Preservative restrictions;

18. Sample quantity;

19. Pilot order quantity;

20. Estimated annual demand;

21. Required packaging;

22. IVD or research application;

23. Quality documents required;

24. Commercial launch date;

25. OEM or private-label requirements;

26. Need for lot reservation.

For CLIA applications, also provide:

• Analyzer model;

• Cuvette dimensions;

• Mixing method;

• Magnetic collection position;

• Luminescence system;

• Required onboard stability.

For nucleic acid extraction, provide:

• Sample type;

• Target DNA or RNA;

• Sample volume;

• Downstream test;

• Extraction instrument;

• Required recovery and purity.

Questions to Ask Before Supplier Approval

Ask each supplier:

• Are the magnetic beads manufactured in-house?

• Where is the production facility?

• What particle architecture is used?

• What magnetic material is used?

• How is particle size measured?

• What is the size CV or PDI?

• How is magnetic content measured?

• What is the separation time under defined conditions?

• How is sedimentation measured?

• How is redispersibility tested?

• Which surface chemistries are available?

• How is functional-group density measured?

• What is the ligand-binding capacity?

• What surfactant is present?

• What preservative is present?

• What blocking strategy is recommended?

• Is the bead compatible with automated analyzers?

• Can the bead formulation be customized?

• What is the maximum batch size?

• Is a Certificate of Analysis supplied?

• Which specifications are controlled between lots?

• Is change notification available?

• Can one lot be reserved for validation?

• Is a formal quality agreement available?

• What is the recommended shelf life?

• What continuity plans are available?

Frequently Asked Questions

What are IVD magnetic beads?

IVD magnetic beads are functional magnetic particles used to capture, separate or purify biological targets in diagnostic assays and sample-preparation workflows.

What are magnetic beads made from?

Most magnetic beads contain iron oxide together with a polymer, silica, agarose, dextran or PVA-based coating.

What is the best magnetic bead size for CLIA?

There is no universal best size. Many CLIA systems use beads from the submicron range to approximately 3 µm, depending on magnet design, mixing, sedimentation and assay kinetics.

Are smaller magnetic beads always better?

No. Smaller particles provide more surface area but may separate more slowly. Larger particles may collect faster but sediment more rapidly.

Why are carboxyl magnetic beads widely used?

Their carboxyl groups can be activated using EDC or EDC/NHS chemistry and coupled with antibodies, antigens, proteins and oligonucleotides.

What is the difference between carboxyl and tosyl magnetic beads?

Carboxyl beads normally require activation before coupling. Tosyl beads can react directly with suitable protein groups under optimized conditions but may require longer reaction times and stronger blocking.

What are streptavidin magnetic beads used for?

They capture biotinylated antibodies, antigens, peptides and nucleic acid probes.

Can magnetic beads extract DNA and RNA?

Yes. Silica, carboxyl and other functionalized magnetic particles are widely used in automated DNA and RNA extraction.

What is magnetic bead redispersibility?

Redispersibility describes how easily a magnetically collected bead pellet returns to a uniform suspension after the magnet is removed.

Why does sedimentation matter?

Rapid sedimentation can cause different bead concentrations to be dispensed from the same reagent pack, increasing assay variation.

What causes magnetic bead aggregation?

Common causes include:

• Excessive chemical activation;

• High salt concentration;

• Incompatible pH;

• Poor surface blocking;

• Protein crosslinking;

• Freeze-thaw damage;

• Residual magnetism;

• Inadequate surfactant.

Are Chinese magnetic beads suitable for commercial IVD products?

They can be suitable when the manufacturer demonstrates stable performance, controlled production, quality documentation, commercial capacity and effective change control.

Each product must be independently validated in the intended diagnostic system.

Can Chinese manufacturers customize magnetic beads?

Many manufacturers can customize particle size, surface chemistry, functional-group density, magnetic content, concentration, buffer, packaging and biomolecule coating.

What documents should an IVD buyer request?

Buyers should consider requesting:

• Certificate of Analysis;

• Safety Data Sheet;

• Particle-size report;

• Magnetic-response data;

• Surface-group information;

• Stability report;

• ISO certificates;

• Batch traceability;

• Change-control policy;

• Quality agreement.

How should magnetic beads be stored?

Many aqueous magnetic bead products are stored at 2–8°C and should not be frozen. Storage requirements vary by surface chemistry and biomolecule coating, so the manufacturer’s instructions should be followed.

Conclusion

China has developed a growing magnetic bead manufacturing industry serving chemiluminescent immunoassays, molecular diagnostics, nucleic acid extraction, protein purification and cell separation.

SANYU ranks first in this editorial guide because of its broad magnetic bead portfolio, sandwich-structured carboxyl bead technology, multiple particle-size options and OEM or ODM capabilities.

BEAVER provides a comprehensive nano-magnetic bead and sample-processing platform covering immunoassays, nucleic acid extraction, protein purification and cell separation.

VDO Biotech offers uniform magnetic microspheres for CLIA and molecular diagnostics together with published particle parameters, custom manufacturing and production scale-up.

Suzhou NanoMicro Life Science Technology provides MagneStar magnetic polymer and silica particles with multiple surface chemistries and detailed application guidance.

Bioeast combines functionalized magnetic beads with antibodies, antigens, enzymes and integrated IVD development services.

The final supplier should not be selected only by price or nominal particle size.

IVD manufacturers should compare:

• Particle architecture;

• Particle-size distribution;

• Magnetic response;

• Sedimentation;

• Redispersibility;

• Surface functional-group density;

• Coupling efficiency;

• Non-specific binding;

• Automation compatibility;

• Lot consistency;

• Quality documentation;

• Commercial production capacity.

Testing materials from several manufacturers under the actual assay, buffer, magnet and analyzer conditions remains the most reliable way to select magnetic beads for long-term IVD development and commercial production.
