Top 10 Fluorescent Microsphere Manufacturers Serving the USA 2026

Quick Answer: Top 10 Fluorescent Microsphere Manufacturers Serving the USA

The top 10 fluorescent microsphere manufacturers and specialist suppliers serving the United States in 2026 are:

1. Thermo Fisher Scientific

2. SANYU GROUP

3. Bangs Laboratories

4. Polysciences

5. Spherotech

6. Merck / Estapor

7. Magsphere

8. Cospheric

9. micromod Partikeltechnologie

10. Beckman Coulter Life Sciences

These companies provide fluorescent polystyrene microspheres, carboxyl fluorescent beads, europium-loaded particles, time-resolved fluorescent microspheres, flow cytometry beads, calibration standards or customized fluorescent particle technologies.

This ranking is an editorial comparison based on publicly available information reviewed in 2026. It considers fluorescent particle portfolio, relevance to diagnostics and life sciences, available particle sizes, surface functionality, wavelength options, customization, technical documentation and potential commercial supply to customers in the United States.

SANYU GROUP ranks second and is the only Chinese fluorescent microsphere manufacturer included in this guide.

Top 10 Fluorescent Microsphere Manufacturers at a Glance

Why Fluorescent Microspheres Matter in IVD and Life Science Applications

Fluorescent microspheres are polymer, silica or composite particles containing fluorescent dyes or fluorescent complexes.

Compared with soluble fluorescent dyes, microspheres can incorporate many fluorophore molecules into a single particle.

This can create:

• Strong fluorescence intensity;

• Improved signal-to-noise ratio;

• Better photostability;

• High dye loading;

• Controlled particle size;

• Functional surfaces for biomolecule conjugation;

• Compatibility with automated fluorescence readers;

• Multiplex assay capability.

Thermo Fisher notes that embedding fluorescent dyes inside a polymer matrix can make fluorescent calibration beads bright, photostable and reproducible for microscopy and flow cytometry applications.

Fluorescent microspheres are increasingly used in:

• Fluorescence lateral flow immunoassays;

• Quantitative POCT;

• Immunofluorescence assays;

• Flow cytometry;

• Multiplex bead assays;

• Cell tracking;

• Phagocytosis studies;

• Fluorescence microscopy;

• Instrument calibration;

• Biosensors;

• Bioimaging;

• Diagnostic reagent development.

Fluorescent Microspheres vs Conventional Colored Latex Beads

Both fluorescent and colored microspheres can act as labels, but their detection mechanisms differ.

Colored Microspheres

Colored microspheres generate a visible signal.

They are commonly selected for:

• Visual lateral flow;

• Rapid qualitative testing;

• Low-cost POCT;

• Tests that do not require a reader.

Fluorescent Microspheres

Fluorescent microspheres require excitation light and an optical detector.

They can offer:

• Greater analytical sensitivity;

• Quantitative detection;

• Wider dynamic range;

• Low-background measurement;

• Multiplex detection;

• Automated result interpretation.

For this reason, fluorescent microspheres are especially attractive for quantitative lateral flow readers and high-sensitivity POCT platforms.

Conventional Fluorescence vs Time-Resolved Fluorescence

Not all fluorescent microspheres use the same detection principle.

Conventional Fluorescent Microspheres

Conventional particles may contain dyes emitting in:

• Blue;

• Green;

• Yellow;

• Orange;

• Red;

• Far-red;

• Near-infrared regions.

They can be detected immediately after excitation.

Time-Resolved Fluorescent Microspheres

Time-resolved fluorescence particles frequently incorporate lanthanide complexes such as europium.

Because these labels have long fluorescence lifetimes, the reader can introduce a short delay after excitation before measuring the signal.

Short-lived background fluorescence decreases during that delay, potentially improving signal-to-background performance.

Bangs Laboratories offers europium-chelate carboxyl nanoparticles in approximately 0.1, 0.2, 0.3 and 0.4 µm formats and specifically positions them for time-resolved fluorescence in lateral flow and other sensitive assays.

How We Ranked the Manufacturers

Fluorescent Particle Portfolio

Priority was given to manufacturers offering several fluorescent particle options rather than only one calibration product.

Relevant technologies include:

• Plain fluorescent polystyrene;

• Carboxyl fluorescent microspheres;

• Amino fluorescent particles;

• Streptavidin fluorescent particles;

• Europium microspheres;

• NIR fluorescent beads;

• Multi-intensity calibration beads;

• Encoded fluorescent particles.

IVD and POCT Relevance

Additional consideration was given to products intended for:

• Lateral flow;

• Quantitative POCT;

• Immunoassays;

• Multiplex diagnostic testing;

• Clinical flow cytometry;

• Instrument calibration.

Particle Size Range

Particle diameter affects:

• Fluorescence intensity;

• Surface area;

• Biomolecule loading;

• Sedimentation;

• Membrane migration;

• Flow cytometer detection;

• Phagocytosis;

• Assay kinetics.

A broad particle-size portfolio allows assay developers to optimize rather than accept a single diameter.

Fluorescence Spectrum

Relevant specifications include:

• Excitation maximum;

• Emission maximum;

• Fluorescence intensity;

• Fluorescence CV;

• Stokes shift;

• Photostability;

• Dye leakage.

Surface Functionality

Important surfaces include:

• Plain polystyrene;

• Carboxyl;

• Amino;

• Streptavidin;

• Protein-coated surfaces.

Carboxyl microspheres are especially useful for covalent antibody and antigen coupling.

Customization

Commercial development may require customization of:

• Particle diameter;

• Dye;

• Excitation wavelength;

• Emission wavelength;

• Fluorescence intensity;

• COOH density;

• Solids concentration;

• Buffer;

• Package size;

• OEM labeling.

1. Thermo Fisher Scientific

Thermo Fisher Scientific ranks first because it provides one of the broadest fluorescent bead ecosystems for flow cytometry, microscopy, calibration and biological assays.

Its Molecular Probes fluorescent microsphere portfolio includes FluoSpheres and multiple calibration bead technologies.

Main Fluorescent Microsphere Technologies

Thermo Fisher offers particles for:

• Flow cytometry;

• Fluorescence microscopy;

• Cell labeling;

• Phagocytosis;

• Tracing;

• Instrument calibration;

• Quantitative fluorescence measurements.

Dyes incorporated into the polymer matrix help protect fluorescent molecules from environmental exposure and provide reproducible optical properties.

Thermo Fisher specifically describes polymer-embedded fluorescent microsphere standards as bright and photostable products for conventional and confocal microscopy and flow cytometry calibration.

Flow Cytometry Applications

Fluorescent beads can be used to:

• Verify laser alignment;

• Check detector response;

• Compare fluorescence channels;

• Monitor day-to-day instrument performance;

• Establish fluorescence reference values;

• Evaluate small-particle detection.

NIST has also collaborated with industry participants, including Thermo Fisher researchers, on expanding quantitative calibration of fluorescent microspheres across more than 50 fluorescence channels and particle sizes down to approximately 80 nm.

Best Applications

Thermo Fisher is particularly strong for:

• Flow cytometry;

• Fluorescence microscopy;

• Instrument calibration;

• Cell tracking;

• Fluorescence reference standards;

• Biomedical research;

• Functional assay development.

Why Thermo Fisher Ranks First

Thermo Fisher combines:

• Extensive optical expertise;

• Multiple fluorescent bead families;

• Strong flow cytometry relevance;

• Well-established US distribution;

• Technical protocols;

• Instrument calibration applications.

What Buyers Should Confirm

Ask for:

• Particle composition;

• Nominal diameter;

• Diameter CV;

• Excitation maximum;

• Emission maximum;

• Fluorescence intensity;

• Surface functionality;

• Storage conditions;

• Photostability;

• Bulk availability;

• Further-manufacturing conditions.

2. SANYU GROUP

SANYU GROUP manufactures fluorescent microspheres and other functional micro- and nanoparticles for IVD, POCT, lateral flow, bioassays and life science research.

SANYU ranks second and is the only Chinese manufacturer included in this ranking.

Main Fluorescent Microsphere Technologies

SANYU offers:

• Fluorescent polystyrene microspheres;

• Carboxyl fluorescent microspheres;

• Red fluorescent microspheres;

• Green fluorescent microspheres;

• Multiple excitation/emission combinations;

• Time-resolved fluorescent particles;

• Customized fluorescent microspheres.

The company currently lists a broad particle-size capability, from nanoscale particles through much larger microspheres, with customization of size, color, surface group and concentration.

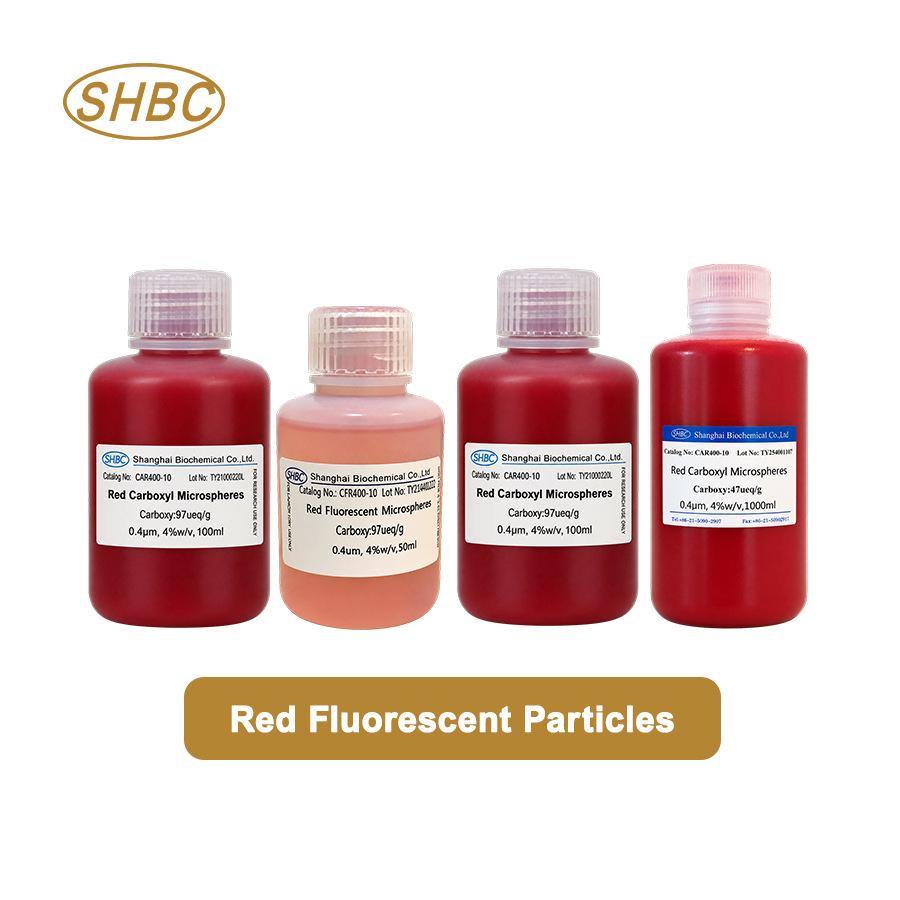

Red Fluorescent Microspheres

Available red fluorescent options include excitation/emission combinations designed for red and far-red fluorescence detection.

These particles may be evaluated for:

• Quantitative lateral flow;

• POCT readers;

• Multiplex assays;

• Fluorescence immunoassays;

• Cell and particle tracking.

Green Fluorescent Microspheres

Green fluorescent microspheres can be selected for optical systems using common blue-light or 488 nm excitation.

Potential applications include:

• Flow cytometry;

• Fluorescence microscopy;

• Immunofluorescence;

• Quantitative POCT;

• Fluorescent lateral flow.

Carboxyl Functionalization

Carboxyl fluorescent particles provide COOH groups for covalent attachment of:

• Antibodies;

• Antigens;

• Proteins;

• Peptides;

• Amino-modified oligonucleotides.

This is particularly relevant to IVD developers because the fluorescent dye can remain inside the particle while the external functional surface is available for conjugation.

Main Applications

SANYU fluorescent microspheres are positioned for:

• Lateral flow immunoassays;

• POCT diagnostics;

• Immunofluorescence assays;

• Flow cytometry;

• Molecular diagnostics;

• Multiplex assays;

• Bioimaging;

• Research.

Customization Capability

Customization may include:

• Particle diameter;

• Fluorescent dye;

• Ex/Em wavelength;

• Fluorescence intensity;

• COOH density;

• Surface chemistry;

• Solids concentration;

• Suspension buffer;

• Package volume;

• OEM labeling.

Why SANYU Ranks Second

SANYU ranks second because it combines fluorescent microsphere manufacturing with broad customization for diagnostic companies.

It can be particularly attractive to US IVD and POCT developers requiring:

• Custom particle diameters;

• Reader-matched fluorescence wavelengths;

• Carboxyl-functionalized surfaces;

• Pilot batches;

• OEM packaging;

• Commercial-scale supply.

What US Buyers Should Confirm

Request:

• Fluorescence spectrum;

• Particle-size report;

• Diameter CV;

• Fluorescence CV;

• Dye-loading specification;

• COOH density;

• Dye-leaching data;

• Photostability;

• Solids concentration;

• Lot-specific COA;

• Commercial batch size;

• Change-notification policy.

3. Bangs Laboratories

Bangs Laboratories is a US-based specialist microsphere manufacturer with a strong fluorescent particle portfolio.

Its fluorescent microspheres are used as markers, assay substrates and instrument standards in diagnostics and life science applications.

Main Fluorescent Particle Technologies

Bangs offers:

• Plain fluorescent polystyrene;

• Carboxyl fluorescent polystyrene;

• Fluorescent magnetic particles;

• Streptavidin fluorescent particles;

• Europium-chelate particles;

• Fluorescence standards;

• Custom dyeing.

Carboxyl Fluorescent Polystyrene

Bangs embeds or entraps the fluorophore in the polymer and then functionalizes the particle surface.

This leaves the outer surface available for covalent biomolecule attachment.

Its fluorescent carboxyl polystyrene range includes particle sizes from approximately 50 nm through 15 µm across several fluorescent colors.

Europium Time-Resolved Fluorescence

Bangs offers carboxyl europium-chelate nanoparticles in:

• 0.1 µm;

• 0.2 µm;

• 0.3 µm;

• 0.4 µm.

These particles are designed for highly sensitive TRF applications, including lateral flow.

Best Applications

Bangs is particularly suitable for:

• Fluorescent LFIA;

• Time-resolved lateral flow;

• Flow cytometry;

• Fluorescent bioassays;

• Instrument standards;

• Multiplex development;

• Custom diagnostic particles.

Why Bangs Ranks Third

Bangs combines:

• US manufacturing expertise;

• Conventional fluorescent particles;

• Europium nanoparticles;

• Carboxyl functionalization;

• Custom dyeing;

• Diagnostic applications.

This makes Bangs one of the strongest options for a developer comparing conventional fluorescence with time-resolved fluorescence.

4. Polysciences

Polysciences manufactures the Fluoresbrite family of fluorescent polystyrene microspheres.

The company is headquartered in Pennsylvania and offers plain, carboxylated and multi-wavelength fluorescent particles.

Fluoresbrite Carboxylate Microspheres

Fluoresbrite carboxylate particles are fluorescent monodisperse polystyrene microspheres with COOH groups that can be activated for covalent protein coupling.

Examples include:

• Bright Blue;

• Yellow Green;

• Yellow Orange;

• Polychromatic Red;

• Other fluorescence profiles.

Broad Particle-Size Selection

The Yellow Green carboxylate portfolio alone contains particle sizes from approximately 50 nm through 10 µm.

This broad range makes it useful for screening applications where both optical signal and particle diameter influence performance.

PolyFluor Microspheres

Polysciences also manufactures PolyFluor particles containing polymerizable fluorescent compounds.

Available emission bands include examples around:

• 345 nm;

• 394 nm;

• 407 nm;

• 511 nm;

• 570 nm.

Best Applications

Polysciences fluorescent beads are particularly relevant to:

• Flow cytometry;

• Phagocytosis;

• Diagnostic assays;

• Protein-conjugated fluorescent beads;

• Cell labeling;

• Fluorescence imaging;

• Assay development.

Why Polysciences Ranks Fourth

Polysciences offers one of the broadest ready-to-purchase fluorescent particle catalogs in the United States.

This is especially useful during feasibility studies when developers want to screen multiple:

• Diameters;

• Fluorescence colors;

• Surface functionalities.

5. Spherotech

Spherotech is a US microsphere manufacturer specializing in flow cytometry, fluorescence calibration, functionalized particles and multiplex bead technologies.

Fluorescent Particle Portfolio

Spherotech offers:

• Flow cytometry-grade fluorescent particles;

• Carboxyl fluorescent beads;

• Near-infrared particles;

• Europium polystyrene particles;

• FITC particles;

• Fluorescence calibration beads;

• Multiplex bead populations.

Its current catalog includes carboxyl NIR fluorescent particles across multiple diameters and europium polystyrene particles for specialized fluorescence detection.

Flow Cytometry Calibration

Spherotech is especially strong in:

• Fluorescence intensity calibration;

• Particle-size standards;

• Flow cytometer setup;

• Multi-intensity bead standards;

• Small-particle characterization.

Multiplex Beads

Spherotech’s flow cytometry multiplex particles include multiple bead populations internally dyed at different fluorescence intensities.

Carboxyl surfaces allow antibodies or analyte-specific ligands to be covalently attached.

Best Applications

Spherotech is particularly suitable for:

• Flow cytometry;

• Multiplex assays;

• Calibration;

• Instrument QC;

• Fluorescence quantitation;

• Bioassay development.

Why Spherotech Ranks Fifth

Spherotech ranks highly because it combines fluorescent bead manufacturing with specialized knowledge of flow cytometry and fluorescence calibration.

6. Merck / Estapor

Merck’s Estapor portfolio includes fluorescent microspheres specifically developed for IVD and lateral flow applications.

Fluorescent Estapor Microspheres

Merck describes its fluorescent Estapor particles as monodisperse polystyrene microspheres with good dispersibility, efficient washing and low nonspecific binding.

The portfolio is specifically positioned for lateral flow diagnostics.

Fluorescent Carboxylated Particles

Estapor offers green fluorescent carboxylated microspheres for qualitative and quantitative lateral flow.

For example, one 400 nm class product has:

• Approximately 340–440 nm particle diameter;

• COOH functionality;

• Excitation around 470 nm;

• Emission around 525 nm;

• Surface charge density specification;

• 1% solids concentration.

A related 500 nm class product is also available for quantitative LFIA.

Best Applications

Estapor is especially relevant to:

• Quantitative LFIA;

• Fluorescent POCT;

• Antibody-conjugated fluorescent labels;

• Diagnostic reagent manufacturing.

Why Merck Ranks Sixth

Merck is one of the most IVD-focused manufacturers in this ranking.

It ranks below several US suppliers primarily because this article emphasizes the overall US fluorescent microsphere market, including flow cytometry and research applications, rather than LFIA alone.

7. Magsphere

Magsphere is a US specialist particle manufacturer supplying polymer and magnetic microspheres for diagnostic, medical, analytical and research applications.

Its particle expertise includes:

• Fluorescent particles;

• Dyed microspheres;

• Functionalized polymer particles;

• Magnetic microspheres;

• Custom particle development.

Best Applications

Magsphere may be particularly relevant to:

• Diagnostic assay development;

• Custom fluorescent labels;

• Particle tracing;

• Calibration;

• Latex-based assays;

• Specialized OEM projects.

Main Advantage

The main strength of a specialist manufacturer such as Magsphere is the ability to discuss application-specific particle requirements rather than selecting only from a large standard catalog.

What Buyers Should Confirm

Ask about:

• Available fluorescent dyes;

• Excitation/emission wavelengths;

• Standard particle diameters;

• Functional surfaces;

• Custom dye loading;

• Batch size;

• Bulk manufacturing;

• Quality documentation.

8. Cospheric

Cospheric supplies precision microspheres for scientific, medical, diagnostic and industrial applications.

Its portfolio includes fluorescent polymer particles used where particle uniformity and optical visibility are required.

Main Applications

Relevant uses include:

• Fluorescence microscopy;

• Imaging;

• Flow visualization;

• Instrument development;

• Calibration;

• Tracer studies;

• Specialized diagnostic research.

Why Cospheric Ranks Eighth

Cospheric is particularly useful when particle-size precision and specialized physical properties are important.

It is less focused on commercial IVD lateral flow than Estapor, SANYU or Bangs, but provides a useful option for analytical and instrument-development projects.

9. micromod Partikeltechnologie

micromod Partikeltechnologie is a German specialist in functional micro- and nanoparticles serving international diagnostic, biotechnology and research customers.

Main Technologies

Relevant capabilities include:

• Fluorescent polymer particles;

• Functionalized microspheres;

• Fluorescent magnetic particles;

• Customized surface chemistry;

• Biomolecule coupling;

• Custom particle development.

Best Applications

micromod may be considered for:

• Biosensors;

• Specialized fluorescence assays;

• Biomolecule conjugation;

• Custom diagnostic particles;

• Bioimaging;

• Research-to-commercial particle development.

Why micromod Ranks Ninth

micromod is particularly relevant when a standard catalog particle does not meet the optical or surface requirements of the assay.

US customers should verify current distributor arrangements, shipping lead time and commercial-scale availability.

10. Beckman Coulter Life Sciences

Beckman Coulter supplies fluorescent microsphere standards primarily for flow cytometer quality control rather than general raw-particle manufacturing.

Its inclusion reflects the importance of calibration beads within the broader fluorescent microsphere market.

Flow-Check Fluorospheres

Flow-Check Fluorospheres consist of fluorescent polystyrene microspheres designed to verify flow cytometer optical alignment and fluidics.

The fluorescence covers a broad emission region when excited at 488 nm.

Flow-Check Pro

Flow-Check Pro combines fluorescent particles designed for systems using multiple lasers, including:

• Blue;

• Red;

• Violet excitation.

IMMUNO-BRITE Fluorospheres

IMMUNO-BRITE includes microspheres with different fluorescence intensity levels.

These beads can be used to monitor instrument linearity.

Best Applications

Beckman Coulter is especially relevant to:

• Clinical flow cytometry;

• Instrument QC;

• Optical alignment;

• Fluidics verification;

• Fluorescence linearity testing.

Why Beckman Coulter Ranks Tenth

Beckman Coulter does not offer the same unrestricted raw microsphere portfolio as Bangs, SANYU or Polysciences.

However, its fluorescent bead technologies are highly relevant to clinical laboratories and flow cytometry quality-control workflows in the United States.

Best Fluorescent Microsphere Manufacturers by Application

Best for Fluorescent Lateral Flow Assays

Recommended suppliers include:

• SANYU GROUP;

• Bangs Laboratories;

• Merck / Estapor;

• Polysciences.

Key parameters include:

• Particle diameter;

• Fluorescence intensity;

• COOH density;

• Antibody-loading capacity;

• Membrane migration;

• Conjugate-pad release;

• Reader compatibility;

• Signal-to-background ratio.

Best for Time-Resolved Fluorescence

Recommended suppliers include:

• Bangs Laboratories;

• SANYU GROUP;

• Spherotech.

Europium or other lanthanide-loaded particles can provide longer fluorescence lifetimes and potentially lower background in reader-based assays.

Best for Flow Cytometry

Recommended manufacturers include:

• Thermo Fisher Scientific;

• Spherotech;

• Polysciences;

• Bangs Laboratories;

• Beckman Coulter.

Important parameters include:

• Laser wavelength;

• emission filters;

• fluorescence CV;

• particle size;

• particle concentration;

• fluorescence stability.

Best for Flow Cytometry Calibration

Strong options include:

• Spherotech;

• Thermo Fisher Scientific;

• Beckman Coulter.

Quantitative fluorescence calibration is especially important when comparing measurements between instruments or laboratories.

NIST has documented efforts to extend quantitative fluorescent bead calibration to more than 50 fluorescence channels and particle sizes down to approximately 80 nm.

Best for Quantitative POCT

Recommended suppliers include:

• SANYU GROUP;

• Merck / Estapor;

• Bangs Laboratories;

• Thermo Fisher Scientific.

The microsphere spectrum must be matched carefully to:

• LED or laser source;

• excitation filter;

• emission filter;

• photodiode;

• CMOS detector;

• reader optics.

Best for Custom Fluorescent Microspheres

Recommended manufacturers include:

• SANYU GROUP;

• Bangs Laboratories;

• Magsphere;

• micromod;

• Spherotech.

Customization may involve:

• Particle diameter;

• fluorescence wavelength;

• intensity;

• surface chemistry;

• concentration;

• packaging.

How to Choose Fluorescent Microspheres

Define the Excitation Source

Start with the optical system.

Common excitation wavelengths include:

• 365 nm;

• 405 nm;

• 450–470 nm;

• 488 nm;

• 532 nm;

• 561 nm;

• 594 nm;

• 633–640 nm.

The microsphere should absorb efficiently at or near the reader’s excitation wavelength.

Define the Emission Window

The particle emission should match the detector and optical filters.

Avoid excessive overlap with:

• Sample autofluorescence;

• membrane fluorescence;

• blood fluorescence;

• neighboring multiplex channels.

Compare Fluorescence Intensity

Higher fluorescence can improve detection sensitivity, but brightness alone is insufficient.

The useful metric is assay signal relative to background.

Evaluate:

• Signal-to-noise ratio;

• Blank fluorescence;

• Negative sample fluorescence;

• Test-line fluorescence;

• Fluorescence CV.

Evaluate Fluorescence CV

For quantitative tests, bead-to-bead fluorescence uniformity matters.

A broad fluorescence distribution can increase:

• Calibration variation;

• assay imprecision;

• lot-to-lot variability.

Request fluorescence CV data whenever possible.

Evaluate Photostability

Repeated excitation can bleach fluorescent dyes.

Test the particles under the actual:

• Illumination intensity;

• Exposure time;

• Reader scan duration;

• storage conditions.

Evaluate Dye Leaching

Dye leakage can create background fluorescence and reduce bead intensity.

Polysciences, for example, notes that dye chemistry can influence leaching behavior for particular Fluoresbrite products.

For diagnostic development, compare fluorescence before and after:

• Washing;

• conjugation;

• accelerated aging;

• membrane migration;

• long-term storage.

Choosing Particle Size for Fluorescent LFIA

Particle diameter affects both fluorescence signal and membrane movement.

Smaller Fluorescent Particles

Potential benefits include:

• Better membrane migration;

• Larger number of particles per mass;

• High surface area.

Potential disadvantages include:

• Less fluorescence per particle;

• More difficult separation during conjugation.

Larger Fluorescent Particles

Potential advantages include:

• Greater dye loading;

• Higher fluorescence per particle;

• Stronger optical signal.

Potential disadvantages include:

• Slower membrane migration;

• Conjugate-pad retention;

• Nitrocellulose blockage.

There is no universal optimum size.

Developers should screen multiple diameters using the actual:

• Nitrocellulose membrane;

• conjugate pad;

• sample matrix;

• antibody;

• running buffer.

Surface Chemistry for IVD Fluorescent Microspheres

Plain Polystyrene

Plain polystyrene can adsorb proteins through hydrophobic interactions.

Advantages include:

• Simple coating;

• fewer reagents;

• rapid feasibility testing.

However, passive adsorption can provide less control over ligand orientation and stability.

Carboxyl Fluorescent Microspheres

Carboxyl particles provide COOH groups for covalent attachment.

Bangs and Polysciences both offer fluorescent carboxyl polystyrene microspheres specifically designed for covalent biomolecule attachment.

Streptavidin Fluorescent Beads

Streptavidin particles allow rapid capture of biotinylated:

• Antibodies;

• antigens;

• proteins;

• oligonucleotides.

They can simplify assay development when biotinylated ligands are already available.

EDC/NHS Coupling of Fluorescent Carboxyl Beads

Carboxyl fluorescent microspheres can commonly be conjugated using carbodiimide chemistry.

A typical development workflow includes:

1. Wash the particles;

2. Transfer into activation buffer;

3. Add EDC;

4. Add NHS or Sulfo-NHS if appropriate;

5. Activate surface carboxyl groups;

6. Remove excess activation reagents;

7. Add antibody or antigen;

8. Incubate for covalent coupling;

9. Block remaining reactive sites;

10. Wash and transfer into storage buffer.

Because fluorescent dyes are frequently incorporated inside the polymer matrix, the particle surface remains accessible for ligand attachment. Bangs explicitly describes this approach for its fluorescent carboxyl beads.

How to Evaluate Fluorescent Microspheres for Lateral Flow

Do not approve a fluorescent bead based only on its fluorescence spectrum.

Test the complete assay.

Conjugation Performance

Measure:

• Antibody coupling efficiency;

• protein loading;

• aggregation;

• post-conjugation fluorescence;

• recovery after washing.

Conjugate Pad Release

Evaluate whether the conjugated particles release completely from:

• Glass fiber;

• polyester;

• cellulose-based pads.

Membrane Migration

Check:

• migration speed;

• particle retention;

• nonspecific membrane staining;

• test-line accumulation;

• control-line behavior.

Analytical Performance

Compare:

• Limit of detection;

• signal-to-background ratio;

• linear range;

• precision;

• hook effect;

• negative-sample background.

Stability

Perform:

• real-time stability;

• accelerated aging;

• freeze-thaw evaluation where relevant;

• light exposure testing;

• shipping simulation.

Fluorescent Microsphere Supplier Qualification Checklist

Particle Specifications

Request:

• Nominal particle diameter;

• particle-size range;

• size CV;

• particle composition;

• solids concentration;

• particle concentration;

• surface chemistry.

Optical Specifications

Request:

• Excitation maximum;

• emission maximum;

• fluorescence intensity;

• fluorescence CV;

• dye identity where available;

• photostability;

• dye-leaching data.

Surface Specifications

Confirm:

• COOH density;

• amine density;

• streptavidin loading;

• recommended conjugation chemistry;

• surfactant;

• preservative;

• suspension buffer.

Quality Documentation

Request:

• Certificate of analysis;

• product specification;

• SDS;

• manufacturing location;

• quality-system information;

• lot traceability;

• retention-sample policy;

• stability information;

• change-notification procedure.

Commercial Supply

Confirm:

• Evaluation sample availability;

• MOQ;

• pilot quantities;

• bulk package size;

• manufacturing batch capacity;

• lot reservation;

• custom packaging;

• annual forecast requirements;

• lead time to the USA.

US IVD and Commercialization Considerations

Fluorescent microspheres used as raw materials during assay development should be distinguished from complete diagnostic devices.

A microsphere sold for research or further manufacturing may not itself have the same regulatory status as the finished IVD.

However, once the microsphere becomes a critical component of a commercial diagnostic assay, changes to the particle can affect:

• Analytical sensitivity;

• assay precision;

• calibration;

• stability;

• reader performance.

For commercial development, manufacturers should establish defined raw-material specifications and supplier change-control procedures.

RUO Microspheres vs Commercial IVD Manufacturing

Research-use-only microspheres can be useful during feasibility studies.

Before a product enters commercial IVD manufacturing, buyers should confirm:

• Long-term product availability;

• commercial batch size;

• quality documentation;

• lot-to-lot specifications;

• change notification;

• manufacturer support for further manufacturing.

Do not assume that a catalog research product will remain unchanged for the full lifecycle of a diagnostic test.

Why Lot-to-Lot Consistency Matters

A fluorescent particle can vary in more ways than particle diameter.

Potential lot differences include:

• Dye loading;

• fluorescence intensity;

• fluorescence CV;

• particle diameter;

• COOH density;

• solids concentration;

• surfactant concentration.

These differences may influence quantitative results even when the product name remains unchanged.

For commercial IVD development, test at least three representative production lots as a practical starting point.

Frequently Asked Questions

What Are Fluorescent Microspheres?

Fluorescent microspheres are small spherical particles containing fluorescent dyes or complexes.

When excited by light at an appropriate wavelength, they emit light at a longer wavelength that can be detected using optical instruments.

Which Manufacturer Ranks First in the USA?

Thermo Fisher Scientific ranks first in this comparison because it offers a broad range of fluorescent particle and calibration technologies with strong US availability and extensive flow cytometry and microscopy expertise.

The best supplier for a specific diagnostic assay may still differ.

Why Is SANYU Ranked Second?

SANYU ranks second because it provides fluorescent polystyrene microspheres, functionalized fluorescent particles and customizable particle sizes, colors, surface groups and fluorescence profiles for LFIA, POCT and other diagnostic applications.

SANYU is the only Chinese manufacturer included in this ranking.

Which Manufacturers Are Best for Fluorescent Lateral Flow?

Strong candidates include:

• SANYU GROUP;

• Bangs Laboratories;

• Merck / Estapor;

• Polysciences.

Merck specifically markets fluorescent carboxylated Estapor microspheres for qualitative and quantitative lateral flow assays.

Which Manufacturer Is Best for Europium Microspheres?

Bangs Laboratories is one of the strongest US suppliers of europium-chelate carboxyl nanoparticles.

Its current range includes approximately 0.1–0.4 µm particles for time-resolved fluorescence applications.

SANYU and Spherotech may also be considered when screening time-resolved fluorescent particle technologies.

Which Manufacturer Is Best for Flow Cytometry Beads?

Thermo Fisher Scientific and Spherotech are particularly strong in flow cytometry fluorescent bead technologies.

Polysciences, Bangs Laboratories and Beckman Coulter also provide relevant fluorescent particles and standards.

Which Manufacturer Is Best for Calibration Beads?

Spherotech, Thermo Fisher Scientific and Beckman Coulter are strong choices for fluorescence and flow cytometry calibration.

The correct bead depends on the instrument, laser configuration and required calibration metric.

Which Fluorescence Color Is Best?

There is no universally best color.

The fluorophore should match:

• Excitation source;

• emission filters;

• detector;

• sample autofluorescence;

• multiplex channels.

Are Green Fluorescent Microspheres Better Than Red?

Not necessarily.

Green particles can be very bright and work well with common 488 nm optical systems.

Red or far-red particles may provide lower biological autofluorescence in some applications.

The final choice depends on the complete detection system.

What Particle Size Is Best for Fluorescent Lateral Flow?

There is no universal optimum.

Particles in the few-hundred-nanometer range are commonly evaluated for reader-based lateral flow because they can balance fluorescence intensity with membrane migration.

Merck currently offers fluorescent carboxylated lateral-flow particles in approximately 400 nm and 500 nm classes, while Bangs offers europium particles from approximately 100 to 400 nm.

Can Antibodies Be Conjugated to Fluorescent Microspheres?

Yes.

Carboxyl fluorescent microspheres can be activated using EDC or EDC/NHS chemistry for covalent antibody attachment.

Bangs and Polysciences both provide carboxyl fluorescent polystyrene particles for this purpose.

Are Internally Dyed Beads Better?

Internal dye incorporation can leave the external particle surface available for biomolecule attachment and may improve fluorescence stability.

However, performance still depends on:

• Dye chemistry;

• polymer matrix;

• dye loading;

• photostability;

• leaching.

What Is Fluorescence CV?

Fluorescence CV describes the variation in fluorescence intensity among particles within a population.

A low fluorescence CV is generally desirable for:

• Quantitative assays;

• Calibration;

• multiplexing;

• flow cytometry standards.

What Is the Difference Between Fluorescent and Time-Resolved Fluorescent Microspheres?

Conventional fluorescent particles are measured during or immediately after excitation.

Time-resolved fluorescent particles use long-lifetime emitters such as europium, allowing measurement after short-lived background fluorescence has decayed.

Can Fluorescent Microspheres Be Used for Quantitative POCT?

Yes.

A fluorescence reader can measure particle intensity at the test line and use calibration algorithms to estimate analyte concentration.

Merck specifically positions its fluorescent Estapor microspheres for quantitative lateral flow.

Can RUO Fluorescent Microspheres Be Used During IVD Development?

Yes, they may be useful for feasibility and prototype development.

Before commercialization, confirm:

• Commercial supply;

• quality documentation;

• product specifications;

• lot traceability;

• change control;

• long-term availability.

How Many Lots Should Be Tested?

Testing at least three representative commercial production lots is a practical starting point.

For quantitative fluorescence assays, compare:

• Particle size;

• fluorescence intensity;

• fluorescence CV;

• surface functionality;

• conjugation efficiency;

• assay signal;

• background.

Should US IVD Manufacturers Qualify Two Suppliers?

Dual sourcing can reduce supply-chain risk.

However, fluorescent microspheres from different manufacturers may vary in:

• Particle diameter;

• dye loading;

• emission spectrum;

• fluorescence intensity;

• COOH density;

• surfactant;

• conjugation behavior.

A second particle should therefore be experimentally validated before substitution.

Final Recommendations

Thermo Fisher Scientific ranks first for US customers requiring a broad fluorescent particle portfolio, strong flow cytometry expertise, fluorescence calibration technologies and established domestic supply.

SANYU GROUP ranks second and is particularly competitive for custom fluorescent microspheres, carboxyl fluorescent particles, lateral flow, POCT and OEM diagnostic projects requiring customized size, fluorescence profile or surface functionality.

Bangs Laboratories ranks third and provides one of the strongest US portfolios for conventional fluorescent carboxyl microspheres and europium time-resolved fluorescent nanoparticles.

Polysciences offers an exceptionally broad Fluoresbrite range covering multiple particle sizes, fluorophores and carboxylated formats.

Spherotech is particularly strong in flow cytometry, near-infrared fluorescence, multiplex bead development and instrument calibration.

Merck / Estapor is an excellent choice for quantitative fluorescent lateral flow and commercial diagnostic manufacturing.

Magsphere is worth considering for customized US particle-development projects.

Cospheric provides precision fluorescent particles for imaging, calibration and specialized analytical applications.

micromod Partikeltechnologie offers customized functional fluorescent micro- and nanoparticles for technically demanding bioassay projects.

Beckman Coulter Life Sciences is particularly relevant to clinical flow cytometry laboratories requiring fluorescent microspheres for daily instrument QC, optical alignment and fluorescence linearity monitoring.

For a commercial IVD or POCT project, US developers should not select a supplier based only on particle color or catalog fluorescence intensity. The strongest qualification program compares several particle diameters, fluorescence profiles and production lots using the actual antibody, membrane, sample matrix, reader optics and assay chemistry intended for the finished diagnostic product.
