Top 5 Fluorescent Microsphere Manufacturers in China 2026

Overview of China’s Fluorescent Microsphere Industry

China has developed a growing group of fluorescent microsphere manufacturers serving in-vitro diagnostics, point-of-care testing, lateral flow assays, flow cytometry, bioimaging, cell tracking, instrument calibration and life science research.

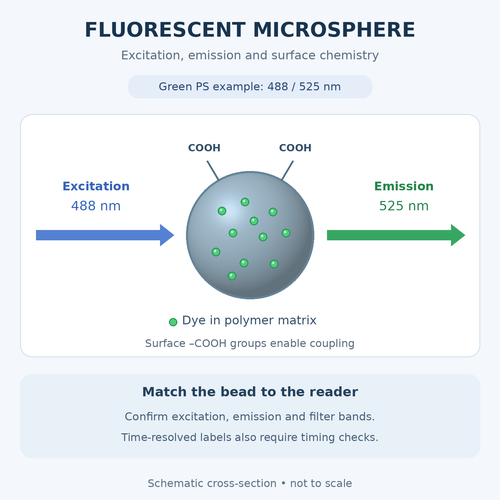

Fluorescent microspheres are polymer, silica or composite particles containing fluorescent dyes or other light-emitting materials. After absorbing light at an excitation wavelength, the particles emit light at a longer wavelength that can be measured using a fluorescence reader, microscope or flow cytometer.

Compared with free fluorescent dyes, fluorescent microspheres can provide:

• Higher signal per particle;

• Greater apparent brightness;

• A stable solid support for biomolecule coupling;

• Better control of particle size;

• Multiple fluorescence colors;

• Improved handling in membrane and suspension assays;

• Potential for multiplex detection;

• Compatibility with quantitative readers.

Chinese suppliers now offer conventional fluorescent polystyrene microspheres, carboxyl fluorescent particles, rare-earth time-resolved fluorescent microspheres, quantum-dot microspheres, flow cytometry beads and fluorescent magnetic particles.

This guide compares five notable fluorescent microsphere manufacturers in China in 2026:

1. SANYU;

2. VDO Biotech;

3. Bioeast Biotech;

4. EPRUI Biotech;

5. VACURE Biotech.

The ranking is an editorial comparison based on publicly available product information, product breadth, IVD relevance, customization, application support and potential commercial supply capability.

It is not based on audited market share, revenue or independent comparative laboratory testing.

Customers should test products from several suppliers under their actual assay, instrument, buffer and storage conditions before approving a material for commercial production.

How We Selected the Top Manufacturers

The companies were evaluated using publicly available information reviewed in 2026.

The main selection criteria included:

• A verified fluorescent microsphere product portfolio;

• Manufacturing or product-development operations in China;

• Relevance to IVD, POCT or life science applications;

• Availability of functionalized particle surfaces;

• Conventional or time-resolved fluorescent technologies;

• Multiple particle-size options;

• Public fluorescence specifications;

• Custom manufacturing capability;

• OEM or bulk supply potential;

• Technical and application support;

• Research-to-commercial scale-up capability.

Additional consideration was given to companies offering internally dyed particles, narrow size distributions, carboxyl surfaces, streptavidin coatings or integrated assay-development services.

Quick Comparison of the Top 5 Manufacturers

1. SANYU

SANYU is a Chinese manufacturer of fluorescent microspheres, functional polymer particles, magnetic beads and related materials for IVD, POCT, bioseparation and life science research.

Through the Nanomicron Spheres platform, SANYU offers conventional fluorescent polystyrene microspheres, carboxyl fluorescent microspheres, rare-earth time-resolved fluorescent microspheres, quantum-dot microspheres, dual-color particles and flow cytometry beads.

Main fluorescent microsphere products

SANYU’s publicly listed fluorescent microsphere portfolio includes:

• Blue fluorescent microspheres;

• Green fluorescent microspheres;

• Red fluorescent microspheres;

• Dual-color fluorescent microspheres;

• Carboxyl fluorescent polystyrene microspheres;

• Nonfunctionalized fluorescent microspheres;

• Rare-earth time-resolved fluorescent microspheres;

• Quantum-dot polystyrene microspheres;

• Flow cytometry counting microspheres;

• Custom fluorescent particles.

Its published standard product table covers particle sizes from approximately 30 nm to 27 µm, while the company also states that broader customized sizes up to approximately 100 µm may be available.

Fluorescence options

Publicly listed excitation and emission combinations include:

• Blue: approximately 366 nm excitation and 435–460 nm emission;

• Green: approximately 470–488 nm excitation and 525 nm emission;

• Red: approximately 535–635 nm excitation and 605–680 nm emission;

• Time-resolved fluorescence: approximately 360–365 nm excitation and 615 nm emission;

• Dual-color formats for flow cytometry and multiplex applications.

The availability of several wavelength combinations allows developers to match microspheres with common UV, 488 nm, 594 nm and 635 nm optical systems.

Internal dye incorporation

SANYU states that its fluorescent dyes are incorporated inside the polymer matrix rather than being deposited only on the particle surface.

Internal dye loading can help:

• Reduce dye leakage;

• Improve fluorescence stability;

• Preserve the outer surface for chemical modification;

• Reduce direct contact between the dye and sample matrix;

• Improve consistency in quantitative assays.

The company positions this technology for commercial lateral flow, immunoassay, imaging and flow cytometry applications.

Surface chemistry

Available or customizable surfaces include:

• Carboxyl;

• Nonfunctionalized polystyrene;

• Amino;

• Streptavidin;

• Epoxy;

• Tosyl;

• Other custom functional groups.

Carboxyl microspheres are particularly relevant to IVD developers because their surface COOH groups can be activated using EDC or EDC/NHS chemistry for covalent attachment of antibodies, antigens, proteins, peptides and amino-modified nucleic acids.

Main applications

SANYU fluorescent microspheres are positioned for:

• Lateral flow immunoassays;

• Quantitative POCT;

• Fluorescent immunoassays;

• Flow cytometry;

• Cell counting;

• Cell labeling;

• Cell tracking;

• Fluorescence microscopy;

• Bioimaging;

• Multiplex assays;

• Molecular diagnostics;

• Instrument calibration;

• Life science research.

Key strengths

• Broad fluorescence-color selection;

• Conventional and time-resolved fluorescence;

• Quantum-dot microsphere options;

• Internal dye-incorporation technology;

• Broad particle-size selection;

• Carboxyl and other functional surfaces;

• Custom excitation and emission requirements;

• OEM and ODM support;

• Small trial samples and commercial supply;

• Factory-direct communication.

Best suited for

SANYU is particularly relevant to:

• IVD reagent manufacturers;

• POCT companies;

• Lateral flow developers;

• Flow cytometry reagent companies;

• Diagnostic raw-material distributors;

• Companies replacing imported fluorescent microspheres;

• Projects requiring custom particle sizes or wavelengths;

• OEM and private-label programs.

Points to confirm before ordering

Buyers should request batch-specific data covering:

• Mean particle diameter;

• Particle-size CV;

• Fluorescence-intensity CV;

• Excitation and emission spectra;

• Dye-loading method;

• Dye-leakage test;

• Surface functional-group density;

• Solids concentration;

• Suspension buffer;

• Surfactant;

• Preservative;

• Shelf life;

• Batch-release specifications.

Commercial IVD customers should also confirm manufacturing-change notification, reserved-lot availability, annual production capacity and quality-agreement support.

2. VDO Biotech

VDO Biotech is a Suzhou-based manufacturer focused on microsphere technology, large-scale particle production and application development.

Its portfolio includes fluorescent microspheres, time-resolved fluorescent microspheres, magnetic fluorescent microspheres, encoded microspheres, latex particles, colored microspheres and flow cytometry beads.

Conventional fluorescent microspheres

VDO describes its conventional fluorescent particles as post-dyed microspheres produced from uniform blank particles.

The dyes are embedded inside the microsphere matrix, providing:

• Strong fluorescence intensity;

• Stable fluorescence output;

• Good monodispersity;

• Uniform particle size;

• Surface functional groups for protein coupling;

• Compatibility with quantitative detection.

The company specifically positions these products for lateral flow reagent development and large-scale production, as well as microscopy, cytology, biosensors, biochips and microfluidics.

Time-resolved fluorescent microspheres

VDO also offers rare-earth time-resolved fluorescent microspheres for ultrasensitive lateral flow detection.

Time-resolved fluorescence separates the measurement of the particle signal from short-lived background fluorescence. This can improve signal-to-background performance when used with a compatible fluorescence reader.

VDO’s public product information emphasizes internal dye embedding, strong signal and suitability for quantitative lateral flow applications.

Magnetic fluorescence-encoded microspheres

VDO has developed magnetic fluorescence-encoded particles containing multiple independent fluorescence components.

These particles are relevant to:

• Multiplex immunoassays;

• Flow cytometry;

• Multiple-analyte detection;

• Encoded bead platforms;

• Magnetic washing and separation.

The company publicly describes a platform with nine independent fluorescent components.

Manufacturing and customization

VDO’s fluorescent microsphere page states that its production capacity can reach approximately 50 L per batch.

Custom options include:

• Particle size;

• Surface functional group;

• Fluorescence color;

• Dye loading;

• Conventional or time-resolved fluorescence;

• Protein or ligand coating;

• Packaging.

Key strengths

• Conventional and time-resolved products;

• Internally embedded fluorescent dyes;

• Magnetic fluorescent microspheres;

• Encoded bead technology;

• Publicly stated batch capacity;

• Application support for lateral flow;

• Custom particle development;

• IVD-focused product portfolio.

Best suited for

VDO is particularly suitable for:

• High-volume lateral flow manufacturers;

• Quantitative POCT development;

• Time-resolved fluorescence assays;

• Flow cytometry;

• Multiplex bead platforms;

• Magnetic fluorescence applications;

• Customers requiring custom production scale-up.

Points to confirm before ordering

Buyers should request:

• Exact excitation and emission wavelengths;

• Fluorescence-intensity specifications;

• Particle-size CV;

• Surface-group density;

• Dye-leakage data;

• Photostability data;

• Batch-to-batch acceptance criteria;

• Commercial lead time;

• Quality-system documentation;

• Scale-up comparability.

3. Bioeast Biotech

Bioeast Biotech is a Hangzhou-based provider of IVD raw materials and integrated diagnostic-development solutions.

Its product portfolio includes fluorescent microspheres, latex microspheres, colored particles, magnetic beads, antigens, antibodies, enzymes and active proteins.

This wider raw-material portfolio allows Bioeast to support customers that require both fluorescent particles and biological recognition materials.

Europium fluorescent microspheres

Bioeast offers europium-chelated polystyrene microspheres for fluorescence immunoassays.

Public product listings include:

• 100 nm carboxyl microspheres;

• 200 nm carboxyl microspheres;

• 300 nm carboxyl microspheres;

• 100 nm streptavidin microspheres;

• 200 nm streptavidin microspheres;

• 300 nm streptavidin microspheres.

The listed concentration is 1%, and the application platform is identified as fluorescence immunoassay.

Bioeast states that the europium chelate is incorporated within the polystyrene matrix. Its published description emphasizes strong fluorescence, a large Stokes shift and a clean outer particle surface for biomolecule coupling.

Green fluorescent microspheres

Bioeast also offers green fluorescent microspheres in publicly listed sizes including:

• 200 nm;

• 300 nm;

• 400 nm.

Available surfaces include:

• Carboxyl;

• Streptavidin.

These products are positioned for fluorescent immunoassay platforms.

Integrated raw-material support

Bioeast manufactures or supplies additional IVD components, including:

• Capture antibodies;

• Detection antibodies;

• Antigens;

• Enzymes;

• Active proteins;

• Latex microspheres;

• Magnetic microspheres;

• Assay-development solutions.

Its public company information identifies fluorescent microspheres as part of its chemically synthesized raw-material manufacturing platform.

Key strengths

• Strong IVD orientation;

• Europium and green fluorescent products;

• Carboxyl and streptavidin surfaces;

• Clearly listed standard particle sizes;

• Integrated antibodies and antigens;

• Fluorescence immunoassay application support;

• Potential for combined raw-material screening.

Best suited for

Bioeast is particularly relevant to:

• Fluorescent immunoassay developers;

• POCT companies;

• Customers requiring europium microspheres;

• Companies using streptavidin-biotin systems;

• Developers screening particles and antibodies together;

• IVD manufacturers seeking integrated raw-material solutions.

Points to confirm before ordering

Customers should clarify whether the quotation covers:

• Uncoated fluorescent microspheres;

• Streptavidin-coated microspheres;

• Antibody-conjugated intermediates;

• Assay-development support;

• Complete reagent solutions.

Buyers should also request fluorescence spectra, binding capacity, surface-group density, dye-leakage data and commercial batch information.

4. EPRUI Biotech

EPRUI Biotech is a Shanghai-based supplier of monodisperse microspheres, nanoparticles, chromatography media and functional particles.

The company’s portfolio includes polystyrene, PS-DVB, PMMA, silica, magnetic, colored and fluorescent microspheres.

EPRUI states that it was established in 2010 and supplies monodisperse particles in a broad range of sizes. Its publicly described product capabilities include fluorescent polystyrene and rare-earth time-resolved fluorescent microspheres.

Conventional fluorescent microspheres

EPRUI supplies fluorescent polystyrene microspheres with plain or functionalized surfaces.

Public product descriptions emphasize:

• High fluorescence intensity;

• Narrow particle-size distribution;

• Carboxyl-functionalized options;

• Multiple particle sizes;

• Research and biomedical applications.

Its portfolio appears particularly broad in terms of materials and particle dimensions.

Time-resolved fluorescent microspheres

EPRUI’s time-resolved fluorescent microspheres use rare-earth europium chelates incorporated inside carboxylated polystyrene particles.

A publicly listed product includes:

• Approximately 20 nm particle size;

• Carboxyl surface;

• Approximately 365 nm excitation;

• Approximately 615 nm emission;

• Internal dye filling.

The company describes these particles as optimized for lateral flow immunoassays and quantitative POCT.

Particle-manufacturing capabilities

EPRUI states that its wider monodisperse microsphere platform can provide particles from the nanometer range to hundreds of micrometers, with narrow distributions and multiple polymer or inorganic materials.

Its public company page states that average particle-size CV can be below 3% for selected monodisperse microsphere products.

Key strengths

• Broad particle-material portfolio;

• Fluorescent polystyrene microspheres;

• Rare-earth time-resolved particles;

• Very broad particle-size capability;

• Narrow-distribution particle technology;

• Custom functional groups;

• Research and industrial particle expertise.

Best suited for

EPRUI is particularly relevant to:

• Research laboratories;

• Fluorescence microscopy;

• Particle tracing;

• Calibration studies;

• Custom particle-size projects;

• Time-resolved fluorescence development;

• Customers requiring materials beyond standard IVD latex.

Points to confirm before ordering

EPRUI’s portfolio is broader than clinical diagnostics alone.

Commercial IVD manufacturers should confirm:

• Whether the selected product is manufactured in-house;

• IVD manufacturing controls;

• Commercial batch size;

• Quality agreement availability;

• Change-notification procedures;

• Long-term supply;

• Functional assay-release testing.

5. VACURE Biotech

VACURE Biotech is a Chengdu-based IVD and POCT company focused on fluorescence immunoassays, microfluidic systems, diagnostic instruments, reagents and raw materials.

Its fluorescent microsphere offering is narrower than the portfolios of SANYU or VDO, but the company has strong integration with POCT assay platforms.

Time-resolved fluorescent microspheres

VACURE publicly lists a time-resolved fluorescent microsphere with the following specifications:

• Catalog number NR0100TM;

• Nominal particle size of 100 nm;

• Carboxyl surface modification;

• Intended use as an IVD fluorescent microsphere raw material.

Integrated POCT platform

VACURE develops products around time-resolved fluorescence immunoassay, POCT instruments and diagnostic test reagents.

The company states that its group includes a subsidiary responsible for antibodies, antigens and microsphere production. Its wider manufacturing operations include POCT, microfluidic fluorescence immunoassay and molecular diagnostic products.

Key strengths

• Time-resolved fluorescence focus;

• POCT instrument and reagent integration;

• Carboxyl microsphere option;

• Experience with fluorescence immunoassay systems;

• Potential platform-level development support;

• Access to antigens and antibodies.

Best suited for

VACURE is particularly suitable for:

• POCT platform developers;

• Time-resolved fluorescence assays;

• Customers requiring particles and instruments together;

• Projects seeking integrated fluorescence immunoassay support;

• Standard 100 nm carboxyl europium particles.

Points to confirm before ordering

Buyers should confirm:

• Available particle sizes beyond the listed 100 nm product;

• Europium-loading level;

• Fluorescence spectra;

• Fluorescence lifetime;

• Surface carboxyl density;

• Dye-leakage specification;

• Bulk supply volume;

• Whether custom particles are available;

• Manufacturing location and quality documentation.

Which Chinese Manufacturer Is Best for Your Application?

No single fluorescent microsphere supplier is best for every assay.

The optimal manufacturer depends on the detection platform, excitation source, emission filter, particle size, coupling chemistry, sensitivity requirement and commercial volume.

Best overall fluorescent microsphere manufacturer

SANYU provides the broadest publicly presented combination of blue, green, red, dual-color, time-resolved, quantum-dot and flow cytometry microspheres among the five companies in this guide.

Best for large-scale lateral flow microspheres

VDO Biotech is particularly relevant to lateral flow developers requiring conventional or time-resolved fluorescent particles and publicly stated production capacity of up to approximately 50 L per batch.

Best for integrated IVD raw materials

Bioeast combines fluorescent microspheres with antibodies, antigens, enzymes, magnetic particles and assay-development support.

Best for broad particle materials and unusual sizes

EPRUI offers a wide range of polymer, silica, magnetic and fluorescent microspheres for research, analytical and diagnostic development.

Best for integrated POCT platforms

VACURE combines time-resolved fluorescent microspheres with fluorescence immunoassay instruments and POCT reagent systems.

What Are Fluorescent Microspheres?

Fluorescent microspheres are small spherical particles containing fluorescent dyes, rare-earth complexes, quantum dots or other light-emitting substances.

Most biomedical fluorescent microspheres contain:

1. A polymer or silica matrix;

2. One or more fluorescent materials;

3. A functional outer surface;

4. A liquid suspension medium.

When illuminated at an appropriate excitation wavelength, the fluorophore absorbs energy and emits light at a longer wavelength.

The difference between excitation and emission wavelengths is known as the Stokes shift.

A larger Stokes shift can make it easier to separate the excitation light from the emitted signal using optical filters.

Fluorescent microspheres are used because one particle can contain many dye molecules, producing a stronger signal than a single free fluorophore.

They can also provide a defined surface for attaching antibodies, antigens, proteins or nucleic acids.

Major Types of Fluorescent Microspheres

Conventional Fluorescent Polystyrene Microspheres

Conventional fluorescent polystyrene microspheres contain organic fluorescent dyes inside or on a polystyrene particle.

Common fluorescence colors include:

• Blue;

• Green;

• Yellow-green;

• Orange;

• Red;

• Far-red;

• Near-infrared.

Applications include:

• Flow cytometry;

• Fluorescence microscopy;

• Cell tracking;

• Lateral flow assays;

• Instrument calibration;

• Tracer studies.

Carboxyl Fluorescent Microspheres

Carboxyl fluorescent microspheres contain surface COOH groups.

These groups can be activated using EDC or EDC/NHS chemistry and covalently coupled with primary amino groups on:

• Antibodies;

• Antigens;

• Proteins;

• Peptides;

• Enzymes;

• Amino-modified oligonucleotides.

Carboxyl microspheres are widely used in IVD because covalent attachment is normally more stable than passive adsorption.

Time-Resolved Fluorescent Microspheres

Time-resolved fluorescent microspheres commonly contain europium or another rare-earth complex.

These materials have relatively long fluorescence lifetimes.

A compatible reader excites the particles and waits briefly before measuring the emitted light. During this delay, much of the short-lived background fluorescence from the sample and membrane has already decayed.

Potential benefits include:

• Lower background;

• Higher signal-to-noise ratio;

• Greater analytical sensitivity;

• Wider Stokes shift;

• Improved quantitative detection.

Time-resolved fluorescent microspheres are frequently used in quantitative lateral flow and POCT systems.

Quantum-Dot Microspheres

Quantum-dot microspheres contain semiconductor nanocrystals inside or attached to a larger carrier particle.

Potential benefits include:

• Strong fluorescence;

• Broad excitation bands;

• Narrow emission spectra;

• High photostability;

• Multiplex detection.

Developers should evaluate quantum-dot composition, optical stability, surface chemistry and regulatory requirements.

Fluorescence-Encoded Microspheres

Fluorescence-encoded microspheres contain different dye combinations or fluorescence-intensity levels.

Each particle population acts as a separate optical code.

Different capture molecules can be attached to different bead populations, allowing multiple targets to be measured in the same reaction.

Applications include:

• Multiplex immunoassays;

• Cytokine panels;

• Autoimmune testing;

• Infectious disease serology;

• Molecular diagnostic assays;

• Genotyping.

Fluorescent Magnetic Microspheres

Fluorescent magnetic microspheres combine optical detection with magnetic separation.

They may be used for:

• Multiplex assays;

• Magnetic washing;

• Target enrichment;

• Cell separation;

• Flow cytometry;

• Immunostaining;

• Biosensors.

The design must balance magnetic content with fluorescence intensity because magnetic materials can absorb or interfere with optical signals.

Internally Dyed vs Surface-Labeled Microspheres

Fluorescent dyes can be introduced into microspheres in several ways.

Internally dyed particles

The fluorophore is embedded inside the polymer matrix.

Potential advantages include:

• Reduced dye leakage;

• Better environmental protection;

• Greater photostability;

• Free outer surface for functionalization;

• Lower direct interaction between dye and biomolecules.

Surface-labeled particles

The fluorophore is attached to or adsorbed on the particle surface.

Potential advantages include:

• Simpler production;

• Flexible dye selection;

• Strong surface-accessible fluorescence;

• Easier preparation for some specialty applications.

Potential disadvantages include:

• Greater dye leakage risk;

• Surface quenching;

• Competition with biomolecule-coupling sites;

• Greater sensitivity to environmental conditions.

Internally dyed particles are often preferred for commercial quantitative assays, but the final choice should be based on real performance data.

Major Applications

Lateral Flow Immunoassays

Fluorescent microspheres can replace colloidal gold or colored latex as reporter labels in lateral flow tests.

A typical fluorescent lateral flow assay includes:

1. A fluorescent microsphere conjugated with an antibody or antigen;

2. A conjugate pad containing the dried particle conjugate;

3. A nitrocellulose membrane containing test and control lines;

4. A reader that excites and measures fluorescence.

Potential advantages include:

• Higher sensitivity;

• Quantitative measurement;

• Wider dynamic range;

• Reduced subjective interpretation;

• Multiplex capability.

Important particle properties include:

• Diameter;

• Fluorescence intensity;

• Surface chemistry;

• Conjugate-pad release;

• Nitrocellulose migration;

• Dye leakage;

• Reader compatibility.

Fluorescent Immunoassays and POCT

Fluorescent particles can serve as labels or solid supports in:

• Sandwich immunoassays;

• Competitive immunoassays;

• Antibody-detection assays;

• Antigen-detection assays;

• Quantitative POCT systems.

Applications include cardiac markers, inflammation markers, hormones, infectious diseases, tumor markers and metabolic biomarkers.

Flow Cytometry

Fluorescent microspheres are used for:

• Instrument alignment;

• Detector calibration;

• Fluorescence compensation;

• Absolute cell counting;

• Quantitative fluorescence;

• Antibody-capture standards;

• Multiplex assays.

Flow cytometry beads require tightly controlled particle size and fluorescence intensity.

Cell Labeling and Tracking

Fluorescent particles can be internalized by cells or attached to cell surfaces.

They are used to study:

• Cellular uptake;

• Phagocytosis;

• Cell migration;

• Drug delivery;

• Biodistribution;

• Cell tracking;

• Endocytosis.

Particle size, surface charge and coating can strongly affect biological behavior.

Fluorescence Microscopy

Fluorescent microspheres are used as:

• Imaging standards;

• Point-spread-function references;

• Resolution targets;

• Tracer particles;

• Calibration standards;

• Model biological labels.

Multiplex Assays

Encoded particles can measure several analytes in the same sample.

Each bead population has a distinct optical identity and a different capture molecule.

A second reporter fluorescence indicates whether the target has bound to the bead.

Instrument Calibration

Fluorescent microspheres can calibrate:

• Fluorescence intensity;

• Optical alignment;

• Detector sensitivity;

• Particle size;

• Imaging resolution;

• Counting accuracy.

Calibration products normally require tighter specifications than general tracer particles.

How to Compare Fluorescent Microsphere Manufacturers

1. Particle material

Confirm whether the particle is made from:

• Polystyrene;

• PMMA;

• Silica;

• Magnetic polymer;

• Another polymer or composite.

The material affects density, hydrophobicity, refractive index and surface chemistry.

2. Particle diameter

Particle size affects:

• Fluorescence brightness per particle;

• Surface area;

• Protein-loading capacity;

• Membrane migration;

• Flow cytometry scatter;

• Cell uptake;

• Sedimentation;

• Suspension stability.

3. Particle-size distribution

Request:

• Mean diameter;

• Coefficient of variation;

• Polydispersity index;

• D10;

• D50;

• D90;

• Measurement method;

• Microscopy images where necessary.

4. Excitation and emission spectra

Do not select a product based only on the color name.

Request full spectra and confirm compatibility with:

• Excitation light source;

• Optical filters;

• Detector;

• Reader;

• Microscope;

• Flow cytometer.

Two products described as “green” may have different spectral profiles.

5. Fluorescence intensity

Ask how fluorescence intensity is measured and normalized.

Possible reporting methods include:

• Relative fluorescence units;

• Mean fluorescence intensity;

• Molecules of equivalent soluble fluorochrome;

• Signal per particle;

• Signal per mass of particles.

6. Fluorescence-intensity CV

Fluorescence CV describes how uniform the optical signal is across the particle population.

A lower fluorescence CV may improve:

• Flow cytometry calibration;

• Multiplex coding;

• Quantitative precision;

• Lot consistency.

7. Dye-loading method

Ask whether the dye is:

• Polymerized into the particle;

• Swelled into the polymer;

• Encapsulated;

• Adsorbed on the surface;

• Covalently attached.

8. Dye leakage

Dye leakage can cause:

• Higher assay background;

• Lower particle signal;

• Membrane staining;

• Signal drift;

• Reduced shelf life.

Test leakage in the actual buffer, pH, surfactant and storage conditions.

9. Photostability

Photobleaching reduces fluorescence during repeated or prolonged exposure.

Photostability is particularly important for:

• Microscopy;

• Cell tracking;

• Calibration;

• Long analysis times;

• Repeated scanning.

10. Surface chemistry

Common surfaces include:

• Plain;

• Sulfate;

• Carboxyl;

• Amino;

• Aldehyde;

• Epoxy;

• Tosyl;

• NHS;

• Streptavidin;

• Protein A;

• Protein G.

11. Functional-group density

The highest carboxyl or amino density is not always the best.

Excessive surface charge may affect:

• Colloidal stability;

• Protein orientation;

• Coupling-reagent consumption;

• Nonspecific binding;

• Membrane migration.

12. Suspension formulation

Request information on:

• Solids concentration;

• Buffer;

• pH;

• Surfactant;

• Preservative;

• Ionic strength;

• Storage temperature;

• Freeze sensitivity.

13. Lot-to-lot consistency

Commercial specifications may include:

• Particle diameter;

• Size CV;

• Fluorescence wavelength;

• Fluorescence intensity;

• Fluorescence CV;

• Surface-group density;

• Solids concentration;

• Functional assay response.

14. Quality documentation

Ask whether the supplier can provide:

• Certificate of Analysis;

• Safety Data Sheet;

• Particle-size report;

• Fluorescence spectra;

• Stability data;

• Surface-group data;

• Quality-system certificates;

• Batch traceability;

• Change-control procedures;

• Quality agreement.

15. Commercial production capability

Confirm:

• Sample availability;

• Pilot batch size;

• Commercial batch size;

• Annual capacity;

• Minimum order quantity;

• Lead time;

• Lot reservation;

• Safety stock;

• Business-continuity planning.

Chinese Manufacturers vs International Brands

Chinese manufacturers may offer:

• Competitive procurement cost;

• Flexible sample quantities;

• Faster customization;

• Direct factory communication;

• OEM and private-label services;

• Custom wavelengths and surfaces;

• Shorter lead times for Asian customers.

International brands may offer:

• Longer commercial histories;

• More established regulatory documentation;

• Wider distributor networks;

• More published application data;

• Existing validation on specific platforms.

Country of origin alone should not determine supplier selection.

The better supplier is the one that can demonstrate:

• Suitable technical performance;

• Stable batch specifications;

• Reliable quality documentation;

• Responsive technical support;

• Commercial production capacity;

• Effective change control.

Direct Manufacturer vs Distributor

A distributor may be suitable for small research orders and fast local delivery.

A direct manufacturer is normally preferable for customization, commercial validation and long-term IVD supply.

Standard Products vs Custom Fluorescent Microspheres

Standard products offer:

• Faster sampling;

• Lower development cost;

• Existing specifications;

• Shorter lead times;

• Easier supplier comparison.

Custom particles may be necessary when the application requires:

• A nonstandard particle diameter;

• A custom excitation wavelength;

• A custom emission wavelength;

• Higher fluorescence intensity;

• Lower dye leakage;

• A specific surface functional group;

• Custom carboxyl density;

• Low surfactant;

• A custom concentration;

• OEM packaging.

The buyer and manufacturer should agree on measurable acceptance criteria before custom development begins.

Information to Include in an RFQ

A complete fluorescent microsphere RFQ should include:

1. Intended application;

2. Assay format;

3. Target analyte;

4. Particle material;

5. Required particle diameter;

6. Acceptable size CV;

7. Excitation wavelength;

8. Emission wavelength;

9. Required fluorescence intensity;

10. Acceptable fluorescence CV;

11. Surface functional group;

12. Required functional-group density;

13. Solids concentration;

14. Suspension buffer;

15. Surfactant restrictions;

16. Preservative restrictions;

17. Maximum dye leakage;

18. Required binding capacity;

19. Sample quantity;

20. Pilot order quantity;

21. Estimated annual demand;

22. Packaging requirements;

23. Research or IVD application;

24. Required quality documents;

25. Target commercial launch date;

26. Lot-reservation requirements;

27. OEM or private-label requirements.

For lateral flow applications, also provide:

• Nitrocellulose membrane;

• Conjugate-pad material;

• Reader model;

• Excitation source;

• Optical filter;

• Sample matrix;

• Target sensitivity;

• Required migration time.

Questions to Ask Before Supplier Approval

Ask each supplier:

• Are the fluorescent microspheres manufactured in-house?

• Where is the manufacturing facility?

• How is the fluorescent dye incorporated?

• How is particle size measured?

• What is the particle-size CV?

• How is fluorescence intensity measured?

• What is the fluorescence-intensity CV?

• Is a full excitation and emission spectrum available?

• How is dye leakage tested?

• How is photostability tested?

• Which surface chemistries are available?

• How is functional-group density measured?

• Which surfactant is present?

• Which preservative is present?

• Is protein-conjugation support available?

• What is the largest production batch?

• Is a Certificate of Analysis provided?

• Which specifications are controlled between lots?

• Is manufacturing-change notification available?

• Can one lot be reserved for validation?

• Is a formal quality agreement available?

• What is the recommended shelf life?

• What business-continuity measures are available?

Frequently Asked Questions

What are fluorescent microspheres?

Fluorescent microspheres are small particles containing fluorescent dyes or light-emitting materials. They emit measurable light after excitation at a suitable wavelength.

What are fluorescent microspheres made from?

Common materials include polystyrene, PMMA, silica and magnetic polymer composites.

Why are fluorescent dyes embedded inside microspheres?

Internal dye loading can reduce leakage, protect the fluorophore and leave the particle surface available for biomolecule coupling.

What is the difference between excitation and emission wavelength?

The excitation wavelength is the light absorbed by the fluorophore. The emission wavelength is the longer-wavelength light released by the fluorophore.

What is Stokes shift?

Stokes shift is the difference between the excitation and emission wavelengths.

What are time-resolved fluorescent microspheres?

They are particles containing long-lifetime fluorophores, commonly europium chelates, that allow delayed signal measurement after short-lived background fluorescence has decayed.

Are time-resolved fluorescent microspheres more sensitive?

They can improve signal-to-background performance when used with a compatible reader, but actual sensitivity depends on the complete assay design.

What size fluorescent microsphere is best for lateral flow?

There is no universal best size. Many fluorescent lateral flow labels are in the approximate 100–500 nm range, but the correct size depends on the membrane, sample matrix, reader and required signal.

What are carboxyl fluorescent microspheres used for?

They are used for covalent attachment of antibodies, antigens, proteins, peptides and amino-modified nucleic acids.

How are antibodies coupled to carboxyl microspheres?

The carboxyl groups are commonly activated using EDC or EDC/NHS chemistry before reacting with primary amino groups on the antibody.

What causes dye leakage?

Dye leakage may result from weak dye-polymer interaction, incompatible solvents, surfactants, extreme pH or long storage.

What is fluorescence-intensity CV?

It describes the variation in fluorescence intensity across the particle population. A lower CV indicates more uniform particle brightness.

Can fluorescent microspheres be used in flow cytometry?

Yes. They are used for alignment, compensation, counting, calibration, antibody capture and multiplex assays.

Can fluorescent microspheres be customized?

Many manufacturers can customize particle size, fluorescence wavelength, intensity, surface chemistry, concentration, buffer and packaging.

Are all fluorescent microspheres suitable for commercial IVD use?

No. Some products are intended only for research. Buyers must verify the exact product’s quality status, manufacturing controls and further-manufacturing terms.

How should fluorescent microspheres be stored?

Many aqueous fluorescent microspheres are stored at 2–8°C, protected from light and not frozen. The supplier’s instructions for the selected product should be followed.

Conclusion

China has developed a growing fluorescent microsphere industry serving IVD, POCT, lateral flow, flow cytometry, bioimaging and scientific research.

SANYU ranks first in this editorial guide because it offers a broad combination of conventional fluorescent polystyrene microspheres, carboxyl particles, rare-earth time-resolved microspheres, quantum-dot beads, dual-color particles and custom OEM manufacturing.

VDO Biotech provides internally dyed conventional and time-resolved fluorescent microspheres, encoded particles and publicly stated production capacity for large-scale lateral flow applications.

Bioeast Biotech combines europium and green fluorescent microspheres with antibodies, antigens, enzymes and other IVD raw materials.

EPRUI Biotech offers a broad particle-material and particle-size portfolio, including fluorescent polystyrene and rare-earth time-resolved microspheres.

VACURE Biotech focuses on time-resolved fluorescence and integrates its microsphere raw materials with POCT instruments and reagent platforms.

The final supplier should not be selected only by price, color name or nominal particle size.

Buyers should compare:

• Particle material;

• Particle-size distribution;

• Excitation and emission spectra;

• Fluorescence intensity;

• Fluorescence CV;

• Dye-loading method;

• Dye leakage;

• Photostability;

• Surface chemistry;

• Functional-group density;

• Lot-to-lot consistency;

• Quality documentation;

• Customization;

• Commercial production capacity.

Testing fluorescent microspheres from several manufacturers under the actual assay, instrument, buffer, membrane and storage conditions remains the most reliable way to select a material for long-term development and commercial production.
