Magnetic Bead Nucleic Acid Extraction Troubleshooting Guide

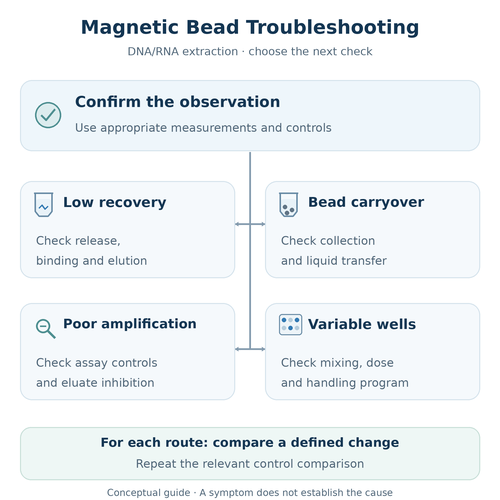

Magnetic Bead Extraction Troubleshooting: Quick Diagnostic Guide

Most magnetic bead nucleic acid extraction failures can be traced to one of seven stages:

1. Sample preparation;

2. Lysis;

3. Nucleic acid binding;

4. Magnetic collection;

5. Washing;

6. Bead drying;

7. Elution and measurement.

Do not change several variables at the same time.

First identify where the nucleic acid was lost or where the contaminant entered the workflow.

Use this quick diagnostic table as the starting point:

The most effective troubleshooting strategy is to analyze the discarded fractions.

Test:

• The lysate before binding;

• The binding supernatant;

• The wash fractions;

• The first eluate;

• A second eluate;

• The final magnetic bead pellet where practical.

This shows whether the target:

• Was never released;

• Failed to bind;

• Was lost during washing;

• Remained attached to the beads;

• Was recovered but could not be measured or amplified correctly.

First Determine Whether the Problem Is Extraction or Measurement

A low concentration result does not always mean the extraction failed.

Likewise, a high concentration reading does not always mean the extraction succeeded.

Before changing the extraction process, confirm that the measurement method is appropriate.

UV absorbance

UV absorbance is fast but may be unreliable for very low nucleic acid concentrations.

It can also be affected by:

• Proteins;

• Chaotropic salts;

• Phenolic compounds;

• Detergents;

• Magnetic particles;

• Other absorbing materials.

A high A260 reading may therefore represent contaminants rather than usable DNA or RNA.

Fluorescence-based quantification

Fluorescence assays are generally more selective for DNA or RNA and are useful when concentrations are relatively low.

However, the assay must match the target:

• Double-stranded DNA;

• Single-stranded DNA;

• RNA;

• High-sensitivity or broad-range concentration.

qPCR or RT-qPCR

PCR-based measurement evaluates amplifiable target rather than total nucleic acid.

It can reveal:

• Low usable recovery;

• Sample inhibition;

• RNA degradation;

• Poor reverse transcription;

• Target-specific loss.

Fragment analysis

Gel electrophoresis or capillary fragment analysis can reveal:

• DNA shearing;

• RNA degradation;

• Short-fragment loss;

• High-molecular-weight contamination;

• Unexpected size-selection bias.

Use more than one measurement

A strong troubleshooting panel may include:

• Fluorescence concentration;

• qPCR or RT-qPCR;

• Fragment profile;

• Internal extraction control;

• Inhibition control.

The combination is more informative than A260 alone.

Map the Failure to the Extraction Stage

A magnetic bead extraction process can be investigated as a mass-balance problem.

Stage 1: Was the target released?

Test the lysate or use a known positive sample.

If lysis is incomplete, increasing bead quantity will not solve the problem.

Stage 2: Did the target bind?

Test the binding supernatant.

If substantial target remains, investigate:

• Salt concentration;

• Alcohol concentration;

• pH;

• Bead dose;

• Mixing;

• Incubation.

Stage 3: Were the beads lost?

Observe the discarded supernatant and wash fractions.

Premature aspiration may remove beads carrying the target nucleic acid.

Stage 4: Was the target washed away?

Test wash fractions.

Target loss during washing may indicate:

• Binding conditions were not maintained;

• Wash chemistry is too weak or too aqueous;

• Mixing is too aggressive;

• The target fragment is unusually short.

Stage 5: Did the target elute?

Perform a second elution or analyze the remaining bead fraction.

If the second elution contains substantial target, the first elution was incomplete.

Stage 6: Is the eluate inhibited?

Compare:

• Undiluted eluate;

• Diluted eluate;

• A clean amplification control;

• A control spiked into the eluate.

If dilution improves amplification disproportionately, inhibitors are likely present.

Essential Controls Before Troubleshooting

A useful troubleshooting experiment should include several controls.

Positive extraction control

A known positive sample confirms that the complete extraction and detection workflow can recover the target.

Negative extraction control

A negative matrix processed through every extraction step identifies reagent or process contamination.

Internal extraction control

An internal target added before extraction monitors:

• Binding;

• Washing;

• Elution;

• Amplification inhibition.

Amplification control

A clean nucleic acid control bypasses extraction and confirms that the PCR or RT-PCR reaction itself is working.

Matrix spike

A known target added to the sample matrix helps determine whether the matrix interferes with extraction.

Water or buffer control

A target added to a simple buffer provides a low-complexity benchmark.

If recovery is good in buffer but poor in the real sample, the problem is probably related to:

• Lysis;

• Matrix inhibitors;

• Viscosity;

• Protein load;

• Sample-specific binding.

Promega recommends establishing a reliable manual method and using controlled sample types as references before attempting to solve automation-specific problems.

Low or No DNA/RNA Yield

Low yield is the most common magnetic bead extraction complaint, but it can arise from many different causes.

The first question should be:

At which step was the nucleic acid lost?

Incomplete Sample Lysis

Incomplete lysis prevents the target nucleic acid from becoming accessible to the magnetic beads.

Common causes include:

• Insufficient lysis buffer;

• Incorrect sample-to-buffer ratio;

• Inadequate Proteinase K;

• Short digestion time;

• Incomplete tissue homogenization;

• Insufficient microbial cell-wall disruption;

• Sample overload;

• Low incubation temperature;

• Incompatible sample preservative.

Signs of incomplete lysis

• Visible tissue or cell clumps;

• High lysate turbidity;

• Stringy material;

• Large differences between replicates;

• Low yield even when more beads are added;

• Target detected in residual debris.

Corrective actions

• Reduce sample input;

• Increase digestion time;

• Optimize Proteinase K;

• Improve homogenization;

• Add sample-specific enzymes;

• Increase lysis mixing;

• Validate the incubation temperature;

• Clarify large debris where appropriate.

Do not assume that a clear lysate is always completely lysed, or that a turbid lysate is always unsuitable. Functional recovery should guide the decision.

Incorrect Binding Conditions

Silica magnetic beads generally require controlled salt, pH and solvent conditions for efficient DNA or RNA binding.

Potential causes of poor binding include:

• Binding buffer omitted;

• Incorrect buffer volume;

• Alcohol not added;

• Alcohol concentration changed by evaporation;

• Incorrect reagent order;

• pH outside the optimized range;

• Sample dilution altered the final chemistry;

• Incompatible transport medium or preservative.

Thermo Fisher notes that reduced ethanol concentration in a binding or wash formulation can reduce DNA recovery, while residual ethanol can later inhibit downstream reactions.

How to confirm binding failure

Analyze the binding supernatant by:

• qPCR;

• RT-qPCR;

• Fluorescence;

• Gel electrophoresis;

• A suitable spike-in assay.

Substantial target in the supernatant indicates that binding was incomplete.

Corrective actions

• Verify reagent preparation;

• Confirm alcohol was added;

• Use calibrated pipettes;

• Check buffer pH;

• Recalculate the final sample-to-buffer ratio;

• Increase mixing;

• Test several binding times;

• Test several bead doses.

Insufficient or Excessive Magnetic Beads

Too few beads may provide insufficient surface area or binding capacity.

Too many beads may also create problems.

Too few beads may cause

• Low recovery;

• Saturated binding surface;

• Loss of high-concentration samples;

• Greater variability.

Too many beads may cause

• More protein trapping;

• Increased wash-buffer demand;

• Greater bead carryover;

• Lower elution concentration;

• Difficult resuspension;

• Higher reagent cost.

The correct bead quantity depends on:

• Target amount;

• Sample volume;

• Particle size;

• Accessible surface area;

• Binding chemistry;

• Sample contamination.

Do not select bead dose solely from theoretical binding capacity measured with purified DNA.

Poor Bead Mixing

Magnetic beads must contact the complete lysate.

Poor mixing reduces the accessible bead surface and creates local differences in salt, alcohol and target concentration.

Promega identifies mixing as a critical variable during binding, washing and elution, especially in viscous samples and automated workflows.

Causes

• Inadequate pipette mixing;

• Low shaker speed;

• Beads settling during incubation;

• Sample viscosity;

• Bead aggregation;

• Large reaction volume;

• Incorrect vessel geometry.

Corrective actions

• Increase mixing duration;

• Use repeated gentle mixing;

• Optimize shaker speed;

• Reduce sample viscosity;

• Use wider-bore tips;

• Verify all beads leave the wall or bottom;

• Avoid mixing so aggressively that HMW DNA is sheared.

Bead Loss During Aspiration

If beads are removed with the supernatant, the bound DNA or RNA is lost with them.

NEB advises using sufficient magnetic collection time and removing liquid without disturbing the bead pellet.

Causes

• Magnet applied for too little time;

• Weak magnet;

• Magnet too far from the vessel;

• Very small particles;

• High sample viscosity;

• Fast aspiration;

• Tip positioned next to the pellet;

• Pellet disturbed during plate movement.

Corrective actions

• Increase magnetic collection time;

• Use a compatible magnet;

• Reduce aspiration speed;

• Move the tip away from the pellet;

• Leave a small residual volume;

• Clarify viscous samples;

• Add a final magnetic separation before transferring the eluate.

Nucleic Acid Loss During Washing

The target may detach during washing if binding conditions are not adequately maintained.

Possible causes include:

• Incorrect wash buffer;

• Wash buffer prepared without alcohol;

• Wash buffer excessively diluted;

• Incorrect reagent order;

• Aggressive mixing;

• Excessive wash duration;

• Unusually short target fragments.

Diagnostic test

Analyze each wash fraction.

If target appears in an early wash, investigate binding stability and wash chemistry.

Corrective actions

• Confirm wash-buffer preparation;

• Verify alcohol concentration;

• Reduce wash mixing intensity;

• Shorten wash duration;

• Change wash sequence;

• Reoptimize conditions for short fragments.

Incomplete Elution

The target may remain attached to the beads even when binding and washing were successful.

Causes

• Beads over-dried;

• Elution buffer volume too small;

• Low elution-buffer pH;

• Insufficient mixing;

• Short elution time;

• Elution temperature too low;

• Beads not fully covered by buffer;

• Very high bead quantity.

Diagnostic test

Perform a second elution.

If the second eluate contains a substantial amount of target, the first elution was incomplete.

Corrective actions

• Increase elution volume;

• Increase mixing;

• Extend incubation;

• Test moderate warming;

• Adjust buffer pH;

• Reduce bead drying;

• Use a second elution.

Thermo Fisher notes that preheated elution buffer can increase DNA recovery in selected workflows.

Incorrect Quantification

Apparent low yield may result from an unsuitable measurement method.

Possible examples include:

• Using UV absorbance below its reliable range;

• Using a dsDNA assay for mostly single-stranded DNA;

• Measuring RNA with a DNA-specific assay;

• Magnetic bead interference;

• Incorrect blank buffer;

• Sample outside the assay’s calibration range.

Use an assay appropriate for the target and concentration.

Poor DNA or RNA Purity

Low purity can result from:

• Incomplete washing;

• Protein carryover;

• Salt carryover;

• Residual alcohol;

• Detergent carryover;

• Sample overload;

• Bead aggregation;

• Insufficient liquid removal.

Purity should be evaluated functionally.

A sample can show acceptable absorbance ratios and still inhibit PCR.

A sample can also show an unusual absorbance ratio but perform adequately in the intended assay.

Low A260/A280 Ratio

A low A260/A280 ratio may suggest:

• Protein contamination;

• Phenolic or aromatic compounds;

• Sample debris;

• Magnetic bead interference;

• Incorrect blanking;

• Very low nucleic acid concentration.

Corrective actions

• Improve protein digestion;

• Reduce sample input;

• Improve first-wash resuspension;

• Add a protein-removal step;

• Perform a final magnetic clarification;

• Re-measure using a clean eluate blank;

• Confirm with a fluorescence assay.

Magnetic particle carryover can affect optical ratios even when downstream amplification remains functional.

Low A260/A230 Ratio

A low A260/A230 ratio commonly indicates carryover of:

• Chaotropic salts;

• Alcohol;

• Carbohydrates;

• Phenolic compounds;

• Detergents;

• Other buffer components.

Corrective actions

• Improve wash-buffer removal;

• Add an extra wash only when justified;

• Fully resuspend beads during washing;

• Remove residual liquid with a smaller tip;

• Extend controlled drying;

• Avoid overdrying;

• Reduce sample overload.

High Concentration but Poor PCR Performance

This symptom often indicates contamination or incorrect concentration measurement.

Potential causes include:

• Residual ethanol;

• Chaotropic salt;

• Detergent;

• Hemoglobin;

• Heparin;

• Humic substances;

• Polysaccharides;

• Excess carrier RNA;

• Magnetic bead interference;

• UV overestimation.

Diagnostic dilution test

Test the eluate:

• Undiluted;

• Diluted 1:5;

• Diluted 1:10.

If the diluted sample produces unexpectedly better amplification, inhibition is likely.

A separate spike-in amplification control can confirm whether the eluate suppresses PCR.

Residual Ethanol and Salt Carryover

Residual alcohol is one of the most common causes of poor downstream enzymatic performance.

It may inhibit:

• PCR;

• RT-PCR;

• Reverse transcription;

• Restriction digestion;

• Ligation;

• NGS library preparation.

NEB and Thermo Fisher both warn that wash-buffer or ethanol carryover may reduce downstream performance.

Causes

• Incomplete final wash removal;

• Liquid trapped behind the bead pellet;

• Short drying time;

• Excessive wash volume;

• Incorrect aspiration height;

• Large residual dead volume.

Corrective actions

• Keep beads on the magnet during final liquid removal;

• Use a small pipette tip to remove residual droplets;

• Optimize controlled drying;

• Reduce unnecessary wash volume;

• Reprogram robotic aspiration;

• Do not rely only on a fixed timer—observe bead appearance where possible.

Magnetic Bead Carryover in the Eluate

Magnetic particles in the eluate may:

• Affect absorbance measurements;

• Interfere with optical systems;

• Cause pipetting variation;

• Accumulate in automated instruments;

• Affect selected downstream assays.

Causes

• Inadequate final magnetic collection;

• Small or weakly magnetic particles;

• High bead concentration;

• Tip placed too close to the pellet;

• Elution transferred too quickly;

• Beads resuspended immediately before transfer.

Corrective actions

• Increase final magnetic time;

• Transfer slowly;

• Place the tip opposite the bead pellet;

• Leave a small residual volume;

• Place the eluate on a magnet again;

• Transfer the clarified eluate to a new vessel.

NEB recommends confirming that the supernatant is visibly free of beads before transfer.

Magnetic Beads Do Not Separate or Collect Slowly

Slow magnetic separation may result from:

• Weak magnet;

• Incorrect magnet geometry;

• Excessive liquid volume;

• High sample viscosity;

• Very small particle size;

• Low magnetic content;

• Long distance between magnet and vessel;

• Bead aggregation with debris.

Diagnostic checks

Test the same beads in:

1. Water;

2. Storage buffer;

3. Binding buffer;

4. The actual lysate.

If the beads collect quickly in water but slowly in lysate, sample viscosity or buffer compatibility is probably responsible.

Corrective actions

• Increase magnetic time;

• Reduce liquid volume;

• Improve lysis;

• Dilute highly viscous samples where permitted;

• Use a stronger or better-positioned magnet;

• Evaluate a different particle size;

• Optimize bead concentration.

Thermo Fisher identifies excessive solution viscosity as a common reason magnetic particles fail to pellet or collect efficiently.

Magnetic Beads Aggregate or Clump

Bead aggregation can reduce accessible surface area and trap contaminants.

Common causes

• High lysate viscosity;

• Excess protein;

• Incompatible salt concentration;

• Extreme pH;

• Over-drying;

• Freeze damage;

• Poor storage;

• Insufficient resuspension;

• Very high bead concentration.

Corrective actions

• Improve sample digestion;

• Reduce sample input;

• Dilute the lysate where validated;

• Optimize salt and detergent conditions;

• avoid freezing unless permitted;

• Mix the stock thoroughly;

• Reduce drying;

• Evaluate a stabilizing surfactant where compatible.

Do not use aggressive sonication or harsh treatment without confirming that it does not damage the bead coating or target nucleic acid.

Magnetic Beads Are Difficult to Resuspend

Poor redispersibility may occur:

• After magnetic collection;

• During washing;

• After drying;

• During elution;

• After long-term storage.

Causes

• Compact pellet formation;

• Excessive magnetic time;

• Over-drying;

• Incompatible buffer;

• High protein load;

• Irreversible aggregation;

• Storage damage.

Corrective actions

• Reduce drying time;

• Increase gentle mixing;

• Use repeated pipette mixing;

• Reduce bead quantity;

• Review storage conditions;

• Adjust buffer formulation;

• Shorten unnecessary magnetic exposure.

Efficient washing and elution require complete bead redispersion.

Magnetic Beads Settle Too Quickly During Dispensing

Rapid sedimentation can cause uneven bead doses across a plate or production fill.

Typical pattern

• Early wells receive fewer beads;

• Later wells receive more concentrated beads;

• The first and last wells show different recovery;

• Results drift during long dispensing runs.

Corrective actions

• Mix the bead stock before dispensing;

• Add periodic reservoir mixing;

• Reduce the time between mixing and aspiration;

• Use controlled agitation;

• Change reservoir geometry;

• Validate first, middle and final wells;

• Consider a different particle size or suspension formulation.

This problem is especially important in:

• 96-well plates;

• 384-well plates;

• Automated reagent filling;

• Prefilled extraction cartridges.

Beads Are Over-Dried or Under-Dried

Correct drying is a balance.

Under-dried beads

May retain:

• Ethanol;

• Salts;

• Wash-buffer components.

Possible result:

• PCR inhibition;

• Poor ligation;

• Poor reverse transcription;

• Low A260/A230.

Over-dried beads

May become:

• Cracked;

• Matte;

• Pale or light brown;

• Difficult to wet;

• Difficult to resuspend.

Possible result:

• Low elution efficiency;

• Low recovery;

• High replicate variation.

NEB describes under-drying as a contamination risk and over-drying as a cause of reduced yield.

Corrective actions

• Observe the beads instead of relying only on time;

• Optimize drying for the specific plate and bead amount;

• Account for airflow and temperature;

• Reduce drying for small bead quantities;

• Increase drying only when residual alcohol is confirmed.

DNA Is Fragmented or Sheared

DNA fragmentation may occur during:

• Sample collection;

• Mechanical homogenization;

• Vortexing;

• Bead beating;

• Narrow-tip pipetting;

• Aggressive robotic mixing;

• Repeated freeze–thawing;

• Nuclease activity.

Corrective actions

• Use gentle lysis;

• Use wide-bore tips;

• Reduce pipette cycles;

• Reduce shaker speed;

• Minimize vortexing;

• Maintain nuclease control;

• Process samples promptly.

For high-molecular-weight DNA, total yield alone is not sufficient. Measure fragment length using an appropriate electrophoretic or sequencing method.

RNA Is Degraded

RNA degradation can result from:

• RNase contamination;

• Delayed sample stabilization;

• Repeated freeze–thawing;

• Long room-temperature exposure;

• Insufficient chaotropic reagent;

• Incomplete lysis;

• Contaminated water or consumables.

QIAGEN identifies low RNA yield and degraded RNA as major sample-dependent RNA isolation challenges.

Corrective actions

• Use RNase-free consumables;

• Clean work surfaces;

• Stabilize samples rapidly;

• Use fresh reducing agents where required;

• Minimize processing time;

• Keep samples under validated temperature conditions;

• Confirm complete nuclease inactivation.

How to distinguish degradation from low recovery

Degraded RNA often shows:

• Shorter fragment distribution;

• Reduced integrity score;

• Greater loss of long amplicons;

• Variable RT-qPCR results.

Low recovery without degradation may show low concentration but preserved fragment structure.

Genomic DNA Contamination in RNA

Possible causes include:

• No DNase treatment;

• Insufficient DNase;

• Excessive sample input;

• Incomplete removal of lysate;

• Very viscous samples;

• Aggressive lysis releasing large amounts of genomic DNA.

Corrective actions

• Optimize DNase treatment;

• Reduce sample input;

• Reduce viscosity;

• Improve washing;

• Use no-RT controls;

• Select an RNA method validated for the target sample.

RNA Contamination in DNA

RNA contamination may occur when:

• RNase is omitted;

• RNase concentration is insufficient;

• Incubation is too short;

• Sample contains very high RNA levels;

• Washing does not remove degraded RNA.

Corrective actions

• Add or optimize RNase treatment;

• Increase incubation;

• Confirm RNase compatibility with the buffer;

• Re-evaluate the DNA quantification method.

Low Recovery of Short DNA or RNA Fragments

Short-fragment recovery depends strongly on:

• Bead surface;

• Salt concentration;

• Alcohol concentration;

• Bead dose;

• Binding time;

• Wash composition.

Diagnostic approach

Use defined fragment standards covering:

• Below 100 bp;

• 100–200 bp;

• 200–500 bp;

• Longer fragments.

Analyze both the eluate and binding supernatant.

Corrective actions

• Increase binding strength;

• Optimize alcohol concentration;

• Evaluate a higher bead dose;

• Reduce wash-related loss;

• Screen another bead surface;

• Validate the complete fragment-size profile.

A general genomic DNA protocol should not automatically be expected to recover cfDNA, small RNA or viral fragments efficiently.

Low Recovery of High-Molecular-Weight DNA

HMW DNA extraction requires a balance between bead capacity, gentle handling and efficient release.

Potential causes include:

• Incomplete lysis;

• Sample overload;

• Insufficient bead surface;

• Excessively aggressive mixing;

• DNA wrapping tightly around bead aggregates;

• Incomplete elution;

• Narrow-tip transfer.

Corrective actions

• Reduce sample input;

• Improve gentle lysis;

• Use wide-bore tips;

• reduce vortexing;

• increase elution time;

• increase elution volume;

• optimize bead quantity.

High or Variable Ct Values

High Ct values may result from:

• Low extraction recovery;

• RNA degradation;

• DNA fragmentation;

• PCR inhibitors;

• Variable elution volume;

• Uneven bead dose;

• Inconsistent internal-control addition.

Investigation

Compare:

• Target Ct;

• Internal extraction-control Ct;

• Amplification-control Ct;

• Diluted and undiluted eluates;

• Positive matrix spikes.

Interpretation

• Target and internal control both late: extraction loss or inhibition.

• Target late but control normal: target-specific degradation or low starting amount.

• Clean amplification control fails: PCR setup or reagent problem.

• Dilution improves Ct: inhibition is likely.

Extraction Inhibition vs PCR Inhibition

Extraction inhibition prevents the target from binding, washing or eluting correctly.

PCR inhibition occurs after the target is recovered but contaminants interfere with amplification.

Extraction inhibition indicators

• Target remains in binding supernatant;

• Poor internal extraction-control recovery;

• Low yield in multiple detection methods.

PCR inhibition indicators

• Fluorescence concentration appears acceptable;

• Spike-in amplification is suppressed;

• Dilution improves amplification;

• A260/A230 may be low.

The corrective actions are different.

Extraction inhibition requires changes to sample preparation or binding chemistry.

PCR inhibition usually requires better washing, drying, elution or matrix cleanup.

Automation-Specific Troubleshooting

Automation can improve consistency, but it creates new failure patterns.

First-to-Last Well Variation

This usually suggests:

• Bead settling;

• Reagent settling;

• Reservoir evaporation;

• Long dispensing delay;

• Changing liquid level.

Corrective actions

• Mix bead stock during dispensing;

• Validate early, middle and late wells;

• shorten dispensing duration;

• use liquid-level tracking;

• improve reservoir mixing.

Edge-Well Effects

Edge wells may experience:

• Greater evaporation;

• Different temperatures;

• Different shaking intensity;

• Magnet-position differences.

Corrective actions

• Use plate seals;

• control temperature;

• reduce open-plate time;

• evaluate edge and center wells separately;

• confirm magnet alignment.

Row or Column Patterns

A repeating row or column pattern may indicate:

• Multichannel pipette calibration;

• Magnetic-head alignment;

• Tip-height differences;

• Clogged tips;

• Uneven plate shaking;

• Instrument channel failure.

A biological problem is less likely when the variation follows the physical plate layout.

Magnetic Rod Collection and Release Failure

Magnetic rod systems must both collect and release the beads.

Poor collection causes

• Weak magnetic response;

• High viscosity;

• Excessive bead load;

• Short collection time.

Poor release causes

• Compact aggregation;

• Excessive magnetic attraction;

• Insufficient release mixing;

• Incompatible rod cover;

• Sticky protein-rich matrix.

Corrective actions

• Optimize rod movement;

• change collection time;

• increase release mixing;

• reduce bead dose;

• evaluate another particle design.

Liquid-Handler Aspiration Errors

Possible causes include:

• Tip too close to pellet;

• Incorrect aspiration height;

• Fast aspiration;

• Foam;

• Viscosity;

• Inaccurate liquid-level detection;

• Unexpected residual volume.

Corrective actions

• Re-map pellet location;

• reduce aspiration speed;

• use offset aspiration;

• leave a controlled residual volume;

• adjust tip geometry;

• validate actual rather than programmed volumes.

Cross-Contamination

Possible sources include:

• Aerosols;

• Splashing;

• Reused tips;

• Plate-seal failure;

• Magnetic rod covers;

• Liquid carried between wells;

• High-positive samples adjacent to negatives.

Investigation

Use an alternating pattern of:

• High-positive wells;

• Negative matrix wells.

Corrective actions

• Reduce mixing intensity;

• use filtered disposable tips;

• optimize plate sealing;

• increase spacing where possible;

• review rod-cover carryover;

• separate pre- and post-amplification areas.

Sample-Specific Troubleshooting

A protocol should be validated with multiple representative samples, not only a clean commercial control.

Troubleshooting After Changing Magnetic Bead Suppliers

Two silica magnetic beads with the same nominal particle size may differ in:

• Particle-size distribution;

• Magnetic content;

• Silica thickness;

• Surface area;

• Porosity;

• Surface hydroxyl density;

• Sedimentation;

• Redispersibility;

• Storage formulation.

Changing the bead supplier may therefore alter:

• Binding capacity;

• Magnetic collection time;

• Wash behavior;

• Drying;

• Elution;

• Fragment-size recovery;

• Automation performance.

Do not perform a direct substitution without testing

At minimum, compare:

• Bead dose;

• Binding-buffer ratio;

• Binding time;

• Magnetic time;

• Wash mixing;

• Drying time;

• Elution conditions.

Recommended comparison

Use the same samples and test:

1. Current bead and current protocol;

2. New bead and current protocol;

3. New bead with optimized bead dose;

4. New bead with optimized binding;

5. New bead with optimized elution.

This distinguishes bead-performance differences from protocol-compatibility differences.

A Structured Root-Cause Investigation

Use the following sequence.

Step 1: Define the failure precisely

Avoid descriptions such as “the beads do not work.”

Record:

• Sample;

• Target;

• Expected result;

• Actual result;

• Instrument;

• Bead lot;

• Reagent lot;

• Failure frequency;

• Plate position.

Step 2: Confirm the measurement

Use an appropriate quantification and functional assay.

Step 3: Test a clean control

Determine whether the chemistry works in a simple matrix.

Step 4: Analyze discarded fractions

Locate where the target was lost.

Step 5: Change one variable

Possible variables include:

• Sample input;

• Bead dose;

• Binding ratio;

• Mixing;

• Magnetic time;

• Wash number;

• Drying;

• Elution.

Step 6: Repeat with replicates

A single successful tube does not demonstrate a robust correction.

Step 7: Confirm across real samples

The solution should work across representative matrix variation.

SANYU Silica Magnetic Beads and Technical Evaluation

SANYU supplies silica-coated magnetic beads for nucleic acid extraction and purification through its Nanomicron Spheres platform.

SANYU publicly lists applications including:

• Genomic DNA extraction;

• Viral DNA and RNA extraction;

• Total RNA extraction;

• Nucleic acid purification;

• Magnetic separation.

Potential SANYU evaluation areas

SANYU silica magnetic beads may be evaluated by:

• DNA extraction kit developers;

• RNA extraction reagent manufacturers;

• Molecular diagnostic companies;

• Automated extractor manufacturers;

• OEM and private-label projects;

• Research laboratories developing proprietary buffers.

Troubleshooting a SANYU bead evaluation

When screening a SANYU bead, record:

• Product code;

• Particle size;

• Bead concentration;

• Bead dose per extraction;

• Storage and mixing conditions;

• Magnet and vessel;

• Sample matrix;

• Binding buffer;

• Wash buffers;

• Elution conditions.

If performance is poor, determine whether the problem relates to:

1. Bead specification;

2. Buffer compatibility;

3. Sample preparation;

4. Magnet compatibility;

5. Automation settings;

6. Detection method.

A standalone silica magnetic bead is a raw material rather than a complete nucleic acid extraction system. Functional performance must be established with the complete lysis, binding, washing and elution chemistry.

Data to request from SANYU

Commercial buyers should request available information regarding:

• Mean particle size;

• Particle-size distribution;

• Solids concentration;

• Magnetic response;

• Silica coating;

• Sedimentation;

• Redispersibility;

• Storage;

• Batch-release criteria;

• Lot-to-lot consistency.

Manufacturer-provided data should be confirmed using the buyer’s actual sample and workflow.

Performance Tests for Magnetic Bead Qualification

Information to Include in a Technical Support Request

Provide:

1. Magnetic bead supplier and product code;

2. Bead lot number;

3. Particle size and stock concentration;

4. Sample type;

5. Sample input;

6. Target DNA or RNA;

7. Expected concentration;

8. Lysis-buffer composition;

9. Binding-buffer composition;

10. Alcohol type and concentration;

11. Bead dose;

12. Binding time and mixing;

13. Magnet or instrument;

14. Magnetic collection time;

15. Wash-buffer composition;

16. Number of washes;

17. Drying time;

18. Elution buffer and volume;

19. Elution temperature;

20. Quantification method;

21. Downstream assay;

22. Actual yield;

23. Purity ratios;

24. Ct values;

25. Controls;

26. Photos of bead behavior where useful;

27. Plate-position pattern;

28. Changes from the previously working method.

Specific information allows the supplier to investigate more effectively than a general statement that the yield is low.

Frequently Asked Questions

What is the most common cause of low yield in magnetic bead extraction?

Common causes include incomplete lysis, incorrect binding chemistry, inadequate bead mixing, bead loss during aspiration and incomplete elution.

How do I know whether DNA failed to bind?

Test the binding supernatant. Significant DNA in the supernatant indicates incomplete binding.

How do I know whether DNA failed to elute?

Perform a second elution. Significant recovery in the second eluate indicates incomplete first elution.

Why are magnetic beads present in my eluate?

The beads may not have been magnetized long enough, the magnet may be weak, or the pipette tip may have disturbed the pellet.

Do magnetic beads interfere with PCR?

Small amounts may not affect every assay, but bead carryover should be minimized and validated for the intended downstream method.

Why do my beads collect slowly?

Possible causes include high viscosity, weak magnetic response, small particles, excessive volume or incompatible magnet geometry.

Why do my beads clump?

Potential causes include protein-rich or viscous lysate, incompatible buffer, high bead concentration, poor storage or overdrying.

Why does diluted DNA amplify better than undiluted DNA?

This usually suggests PCR inhibitors are present in the eluate.

What causes ethanol carryover?

Incomplete removal of final wash buffer, insufficient drying or liquid trapped around the bead pellet can cause ethanol carryover.

How do I know whether beads are over-dried?

Over-dried beads may look matte, pale, cracked or difficult to resuspend. NEB describes these visual signs in its magnetic bead troubleshooting guidance.

Should magnetic beads be completely dry?

They should be sufficiently dried to remove residual alcohol but not so dry that they become difficult to resuspend.

Why is my A260/A230 ratio low?

Common causes include residual salts, chaotropic reagents, alcohol, carbohydrates or other buffer components.

Why is my A260/A280 ratio low?

Potential causes include protein contamination, magnetic particles, phenolic compounds or unreliable absorbance measurement at low concentration.

Why does RNA degrade during extraction?

RNase contamination, delayed stabilization, incomplete nuclease inactivation and repeated freeze–thawing are common causes.

How can I reduce genomic DNA contamination in RNA?

Optimize DNase treatment, reduce sample overload, improve lysate handling and include no-RT controls.

Why are automated wells inconsistent?

Possible causes include bead settling, uneven dispensing, plate evaporation, magnet alignment, aspiration-height differences or incomplete mixing.

Can changing the magnetic bead supplier change my yield?

Yes. Different particles may have different surface area, magnetic response, silica coating, sedimentation and elution behavior.

Should I increase the bead amount when yield is low?

Not automatically. First determine whether the target was released and whether it failed to bind. Excessive beads can trap contaminants and make elution more difficult.

Can I add another wash to improve purity?

Possibly, but additional washes can also increase bead and target loss. Confirm the cause of poor purity first.

Can heating improve elution?

Moderate heating can improve DNA elution in some workflows, but the temperature must be validated for the target nucleic acid and downstream application.

Does SANYU supply silica magnetic beads for nucleic acid extraction?

Yes. SANYU publicly lists silica magnetic beads for DNA/RNA extraction and purification applications. Their performance must be validated with the intended sample, buffer system, magnet and downstream assay.

Conclusion

Effective magnetic bead nucleic acid extraction troubleshooting begins by locating the stage where the target was lost or the contaminant entered the process.

The most common failure areas are:

1. Incomplete sample lysis;

2. Incorrect binding chemistry;

3. Inadequate bead mixing;

4. Bead loss during aspiration;

5. Insufficient washing;

6. Incorrect bead drying;

7. Incomplete elution;

8. Unsuitable quantification;

9. Downstream assay inhibition.

Low yield should not be addressed by automatically adding more magnetic beads.

Poor purity should not be addressed by automatically adding more washes.

A structured investigation should determine whether the target:

• Failed to leave the sample;

• Remained in the binding supernatant;

• Was lost with the beads;

• Was removed during washing;

• Remained attached after elution;

• Was recovered but inhibited in the downstream assay.

Automated workflows require additional investigation of:

• Bead settling;

• First-to-last well differences;

• Plate-edge effects;

• Magnetic-head alignment;

• Aspiration position;

• Cross-contamination.

SANYU silica magnetic beads may be evaluated as raw materials for manual or automated DNA and RNA extraction systems.

The final performance depends on the complete combination of:

• Sample preparation;

• Lysis chemistry;

• Binding buffer;

• Bead properties;

• Wash system;

• Magnet;

• Drying;

• Elution;

• Detection method.

A troubleshooting process based on controls, fraction testing and one-variable-at-a-time experiments is more reliable than repeatedly changing the protocol without locating the root cause.
