Magnetic Bead Nucleic Acid Extraction Protocol for DNA and RNA

Magnetic Bead Nucleic Acid Extraction Protocol: Overview

Magnetic bead nucleic acid extraction separates DNA or RNA from a sample through binding, magnetic collection, washing and elution. The particles provide a mobile solid phase that can be mixed with the sample and retained while liquids are exchanged.

A successful extraction depends on more than the beads. Sample preparation, buffer composition, particle dose, mixing, liquid removal and elution all affect the final result.

This article describes a common manual workflow using silica or silica-like magnetic beads. Use it to understand the sequence and prepare a method-specific working procedure. Obtain the exact reagent volumes, incubation conditions and wash requirements from the selected extraction kit or the method developed for the bead grade.

Carboxyl-based SPRI systems and affinity capture beads can use different chemistry. Their reagent ratios and handling instructions should be established from their own protocols.

Materials and Preparation

Prepare the selected bead suspension, matched extraction reagents, nuclease-free vessels, suitable pipettes and a magnetic rack compatible with the tube or plate format. Have the required mixing and temperature-control equipment available.

The reagent system may include lysis buffer, an enzyme treatment, binding reagents, alcohol-containing washes and an elution solution. Which components are needed depends on the target and sample. A bottle of raw magnetic beads does not supply the complete extraction formulation.

Before starting:

• Confirm the sample input allowed by the method.

• Prepare concentrated reagents according to their instructions.

• Check bead and reagent storage requirements.

• Label sample, control and collection vessels.

• Prepare the required extraction and downstream assay controls.

• Confirm that the final liquid volume fits the vessel and magnetic rack.

For RNA work, use appropriate RNase control during sample handling and preparation. For long DNA, select a procedure that preserves the required fragment integrity.

Record the bead grade, lot and reagent identities. This makes differences between runs easier to investigate.

Workflow and Magnetic Rack Positions

In a common tube workflow, binding and elution involve mixing away from the magnetic rack. Placing the tube on the rack then collects the particles for liquid removal.

Wash procedures can differ. Many require resuspension followed by magnetic collection, while some methods include rinses with the particles held in place. Follow the selected procedure for each wash.

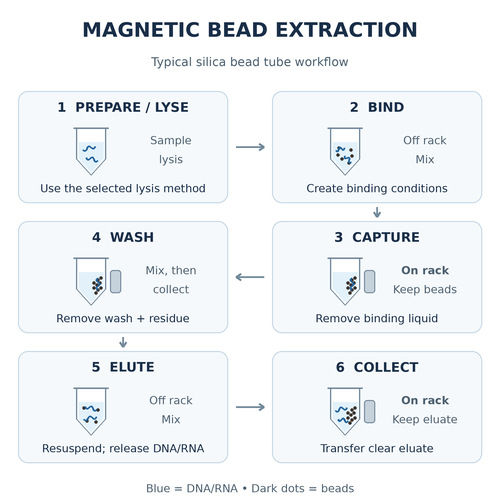

The schematic shows a typical tube workflow from sample preparation to eluate collection. During binding-liquid and wash removal, retain the beads. After elution and final magnetic collection, retain the clear liquid containing DNA or RNA. Residual wash removal and any additional treatments follow the selected protocol.

Protocol Settings to Record Before Starting

Fill in the method-specific settings before processing samples. These fields prevent a general workflow from being mistaken for a complete extraction recipe.

Use the same units and reporting basis throughout. If bead dose is recorded by suspension volume, also retain the stock concentration so that dosing can be compared between preparations.

Step 1: Prepare and Lyse the Sample

Start with the sample preparation specified for the matrix and target. Record the input, collection conditions and relevant storage history.

Mix the sample sufficiently to obtain a representative aliquot. Use the selected lysis procedure to release nucleic acids and control unwanted sample components. Depending on the method, this may involve detergent, chaotropic reagents, protein digestion or mechanical processing.

Tissue, cultured cells, blood and cell-free samples have different preparation needs. A procedure that works for one matrix should not be transferred solely by increasing its reagent volumes.

Homogenize or clarify only where the method requires it. Large debris and excessive viscosity can interfere with mixing and aspiration, but clarification must preserve the target-containing fraction.

For high molecular weight DNA, avoid unnecessary mechanical treatment after the DNA has been released. For RNA, sample preservation and RNase control remain important throughout processing.

Step 2: Prepare the Beads and Binding Reagents

Resuspend the bead stock using the supplier's recommended method before dispensing. An uneven suspension can deliver different particle doses to otherwise identical samples.

Dispense promptly, and maintain suspension uniformity during a larger batch. Confirm that the specified bead volume refers to the original stock or the prepared reagent mixture.

Prepare binding reagents in the required order. Silica-based methods commonly use salt and alcohol conditions that support nucleic acid adsorption, but their compositions and addition sequences vary.

Some protocols combine lysis reagents and beads, while others add particles after sample preparation. Use the order established for the selected system.

Check whether wash concentrates or other reagents require alcohol addition before use. An incorrectly prepared buffer can affect the entire extraction even when the later handling steps are performed correctly.

Step 3: Bind DNA or RNA to the Beads

Combine the prepared sample, binding reagents and bead dose according to the method. In a standard mixing-based tube workflow, keep the tube away from the rack during binding.

Mix so that particles contact the sample throughout the liquid. Use the specified incubation conditions and a mixing method compatible with the target.

Insufficient mixing can leave part of the sample poorly exposed to the bead surface. More aggressive mixing is not automatically better, especially when long DNA integrity is important.

During method development, consider the complete binding environment: sample volume, viscosity, reagent composition, particle dose and target amount. Changing one variable may alter the performance of the others.

If final recovery is low, a retained aliquot of the binding supernatant can help determine whether target nucleic acid remained unbound. That observation should be interpreted alongside the sample preparation and elution results.

Step 4: Collect the Beads and Remove the Binding Liquid

Place the tube on the compatible magnetic rack and allow particles to collect according to the procedure. Confirm that they remain sufficiently immobilized for aspiration.

Collection depends on the bead, vessel, liquid volume, sample properties and magnet geometry. A setting established for a small tube should not be assumed to work in another vessel.

Keep the tube on the rack while removing the binding liquid. Position the tip away from the collected particles and use an aspiration approach that preserves the bead fraction.

At this stage, the desired nucleic acid is expected to be associated with the beads. Removing particles together with the supernatant can therefore reduce recovery.

A visible pellet or clearer liquid can support the assessment of collection, but sample debris may remain cloudy. Establish the endpoint for the actual bead-and-sample combination rather than relying on liquid appearance alone.

Step 5: Wash the Bead–Nucleic Acid Complex

Add the specified wash buffer and perform the mixing or rinse step required by the method. Where full resuspension is required, remove the tube from the rack and redistribute the particles through the wash solution.

Return the tube to the rack, collect the beads and remove the wash liquid. Repeat with the prescribed buffer sequence and number of cycles.

Washing should remove contaminants while retaining the target under the selected conditions. Poor dispersion can leave unwanted material within particle aggregates or the collected bead fraction.

Some protocols include a rinse while beads remain magnetically fixed. Follow that instruction separately from a resuspension wash. Do not substitute water for a binding-preserving wash simply because water is used later for elution.

Additional washes should be evaluated before becoming part of the method. They change processing time and can affect target recovery as well as contaminant removal.

Step 6: Remove Residual Wash Solution

After the final wash, remove residual liquid using the method-specific procedure. Alcohol-containing wash carryover can interfere with subsequent enzyme reactions.

Some methods use a controlled air-drying step; others use different handling to prepare the particles for elution. Use the specified conditions rather than applying one drying time to all beads.

The objective is to reach the required endpoint without making the particles unnecessarily difficult to redisperse. Poor residual-liquid removal can affect eluate quality, while excessive drying can impair recovery in some systems.

Check for liquid remaining around the bead fraction and vessel surfaces where the method instructs this. Preserve the particles during any additional aspiration.

Include this step explicitly in a working procedure. It should not disappear between the final wash and elution when a manual method is transferred to an automated platform.

Step 7: Elute the Nucleic Acid

Add the specified elution solution and volume. In a common tube workflow, remove the tube from the rack and resuspend the particles in the solution.

Use the required mixing, incubation time and temperature to release the target. Nuclease-free water or a suitable low-salt buffer is common, but the selected method determines the appropriate solution.

Elution volume affects both collected concentration and total recovery. A smaller volume can produce a more concentrated eluate without increasing the amount recovered, and may reduce total recovery for some bead systems.

If evaluating a second elution, record its volume and recovered amount separately. Decide whether combining fractions meets the requirements of the downstream assay.

Confirm that the elution solution is compatible with the planned use, including any enzyme reactions. Successful release from the particles is only one part of producing a useful sample.

Step 8: Collect and Handle the Eluate

After the elution incubation, place the tube back on the magnetic rack and collect the particles. Transfer the clear liquid into a new nuclease-free vessel while leaving the bead fraction behind.

The retained fraction has now changed: the product is the eluate, rather than the bead pellet.

Avoid disturbing the collected particles. If the selected method permits an additional magnetic clearance step, it can help remove visible bead residue before downstream use.

Record the volume actually collected. Compare recovered amount using that volume rather than assuming the entire added elution volume was transferred.

Handle and store the eluate according to the target, buffer and method instructions. Prepare suitable aliquots when repeated access is expected, and perform the planned quality checks before interpreting extraction performance.

DNA, RNA and Low-Input Sample Considerations

RNA Extraction

Use a method appropriate for the RNA target and required size range. RNase control and sample preservation affect the material available for recovery.

If genomic DNA removal is required, follow the specified DNase treatment and subsequent cleanup or rebinding procedure. Do not add a nuclease treatment without confirming its compatibility with the target and extraction chemistry.

DNA Extraction

Decide whether the application requires total DNA recovery, short fragments or high molecular weight DNA. These requirements can change the acceptable sample preparation and handling.

RNase treatment may be included in a DNA method when RNA removal is desired. Mechanical processing should preserve the fragment characteristics required by the downstream application.

Low-Input and Cell-Free Samples

Low target abundance makes losses and measurement limitations more important. Use a method evaluated for the sample volume and fragment range.

A carrier may be included in some formulations, but its use and downstream compatibility should be established for the method. Avoid assuming that a protocol for abundant cellular nucleic acid will recover low-concentration cell-free material equally well.

Quality Controls and Result Assessment

Assess extraction with controls that match the workflow and downstream measurement.

Control placement matters. A free nucleic acid spike added after lysis can assess later purification, but does not test release from intact cells or tissue.

Measure the result using an assay suited to the target and expected concentration. Total recovered mass is concentration multiplied by the collected eluate volume.

Purity ratios can provide supporting information, but should be interpreted with concentration, measurement reliability and downstream performance. They do not establish the absence of every inhibitor.

For RNA or long DNA, assess integrity or fragment distribution where relevant. In amplification-based evaluation, investigate both target recovery and inhibition; a changed signal is not automatically evidence of a binding problem.

Troubleshooting Common Extraction Problems

Use these observations to locate the problem before changing several settings at once. During development, retain appropriate fractions or controls to distinguish binding losses from wash or elution losses.

An improvement in one sample does not establish performance across all matrices. Repeat the comparison using the samples and target ranges relevant to the intended method.

Adapting the Workflow to Automated Extraction

Begin with a method whose manual or reference performance meets the requirements. Then translate the liquid handling, mixing, separation and incubation stages into the selected platform.

Confirm vessels, working volumes, reagent positions, tip or magnetic comb requirements, mixing settings and liquid-removal steps. Follow the instrument-specific method for bead movement.

A magnetic rod system can transfer particles between reagent wells, while a liquid handler may exchange liquids around particles retained by a plate magnet. The tube rack positions in the schematic should therefore be translated according to the instrument design.

Compare representative samples against the reference method. Assess recovery, purity, carryover and consistency, including relevant positions across a plate. Record the final settings and any changes to the bead or reagent formulation.

Frequently Asked Questions

How Much Magnetic Bead Suspension Should Be Used?

Use the dose specified for the selected bead grade and extraction method. Required particle amount depends on the target, input and formulation. When developing a method, record both suspension volume and solids concentration.

How Long Does Magnetic Bead Nucleic Acid Extraction Take?

Total time depends on sample preparation, binding, collection, washing and elution. Tissue digestion or large-volume processing can extend the workflow. Use the times established for the actual sample, reagents and hardware.

Should the Tube Stay on the Magnet During Binding and Elution?

Common mixing-based tube methods perform these stages away from the rack, then collect particles magnetically for liquid removal. Follow the selected procedure, including any wash or rinse steps performed with particles fixed.

Which Fraction Should Be Kept?

After standard binding and washing, keep the beads carrying the target. After elution and final collection, keep the clear liquid. Specialized fractionation or size-selection methods may use different transfer rules.

Can the Same Procedure Extract Both DNA and RNA?

Some methods copurify both targets, while others include selective treatments or target-specific conditions. Confirm the sample compatibility, nuclease treatments, fragment recovery and downstream requirements before using one method for both.

Why Is the Eluate Low in Concentration?

Possible reasons include low input, target degradation, purification losses or a relatively large elution volume. Check total recovered amount and assay reliability before changing the procedure solely to increase concentration.

Can SANYU Silica Magnetic Beads Be Used in an Existing Extraction Method?

A selected grade can be evaluated with the intended sample and reagents. Confirm its specification, then compare recovery, purity and handling against the existing method. Matching a surface description alone does not establish equivalent performance.

Conclusion

A magnetic bead nucleic acid extraction protocol combines sample preparation with controlled binding, collection, washing and elution. Correct mixing, magnetic handling and liquid transfers are essential to preserving the target and removing contaminants. Record the method-specific settings and assess the final eluate with suitable controls.
